TC-600-TM-RP

Active

Amphenol Times Microwave Systems

TNC-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC-600-TM-RP

Active

Amphenol Times Microwave Systems

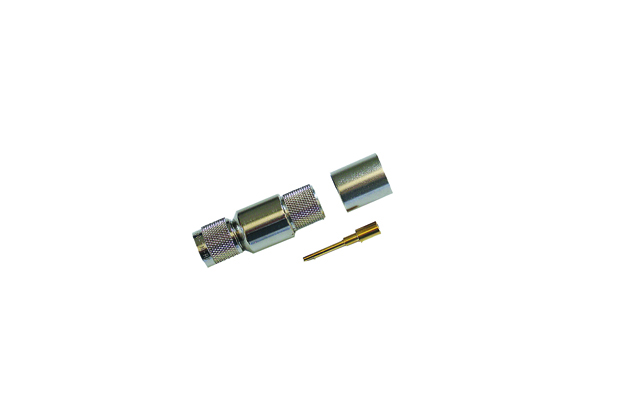

TNC-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-600-TM-RP	TC-600 Series

	-	-
Body Finish	Nickel	Nickel, White Bronze, Silver, Tri-Metal
Body Material	Brass	Brass
Cable Group	LMR-600	LMR-600, LMR-600-75
Center Contact Material	Phosphor Bronze	Phosphor Bronze, Brass, Beryllium Copper
Center Contact Plating	Gold	Gold, Silver
Connector Style	RP-TNC	RP-TNC, TNC, UHF, N Type, 7/16 DIN, QDS, HN Type, 4.3/10, LC
Connector Type	Plug, Female Socket	Plug, Female Socket, Jack, Male Pin
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On
Frequency - Max [Max]	3 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.1 dB
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	500 V	2.5 - 5000 V

TC-600 Series

TNC-MALE (PLUG) CRIMP/REVERSE PO

Part	Contact Termination	Cable Group	Impedance	Connector Style	Connector Type	Center Contact Material	Dielectric Material	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Housing Color	Center Contact Plating	Mounting Type	Voltage Rating	Body Finish	Number of Ports	Body Material	Mating Cycles	Ingress Protection	Insertion Loss
Amphenol Times Microwave Systems TC-600-TM-RP	Solder	LMR-600	50 Ohms	RP-TNC	Female Socket, Plug	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	3 GHz	85 °C	-40 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	500 V	Nickel	1	Brass
Amphenol Times Microwave Systems TC-600-UM-X
Amphenol Times Microwave Systems TC-600-TF-X	Solder	LMR-600	50 Ohms	TNC	Female Socket, Jack	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	6000 MHz	125 °C	-55 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	750 VDC	White Bronze	1	Brass	500
Amphenol Times Microwave Systems TC-600-UMC	Solder	LMR-600	50 Ohms	UHF	Male Pin, Plug			2.5 GHz	85 °C	-40 °C	Clamp	Silver	Gold	Free Hanging (In-Line)		Silver	1
Amphenol Times Microwave Systems TC-600-NMH-75/50	Solder	LMR-600-75	50 Ohms	N Type	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	2 GHz	85 °C	-40 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	1000 VDC	Nickel	1	Brass
Amphenol Times Microwave Systems TC-600-716M-X	Solder	LMR-600	50 Ohms	7/16 DIN	Male Pin, Plug	Beryllium Copper, Brass	Polytetrafluoroethylene (PTFE)	6000 MHz	85 °C	-40 °C	Crimp	Silver	Silver	Free Hanging (In-Line)		White Bronze	1	Brass		IP67 - Dust Tight, Waterproof	0.05 dB
Amphenol Times Microwave Systems TC-600-716MC	Solder	LMR-600	50 Ohms	7/16 DIN	Male Pin, Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	2.5 GHz	85 °C	-40 °C	Clamp	Silver	Silver	Free Hanging (In-Line)	2700 V	Silver	1	Brass
Amphenol Times Microwave Systems TC-600-TM-RA-D	Solder	LMR-600	50 Ohms	TNC	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	6000 MHz	125 °C	-55 °C	Crimp	Silver	Gold	Free Hanging (In-Line), Right Angle	500 V	White Bronze	1	Brass	500
Amphenol Times Microwave Systems TC-600-NMC-2-D
Amphenol Times Microwave Systems TC-600-NF-PL	Solder	LMR-600	50 Ohms	N Type	Female Socket, Jack	Brass	Polytetrafluoroethylene (PTFE)	6000 MHz	85 °C	-40 °C	Crimp	Silver	Gold	Free Hanging (In-Line)	1000 VDC	Silver	1	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 34.18

Description

General part information

TC-600 Series

RP-TNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
