2008W
ActiveCurtis Industries

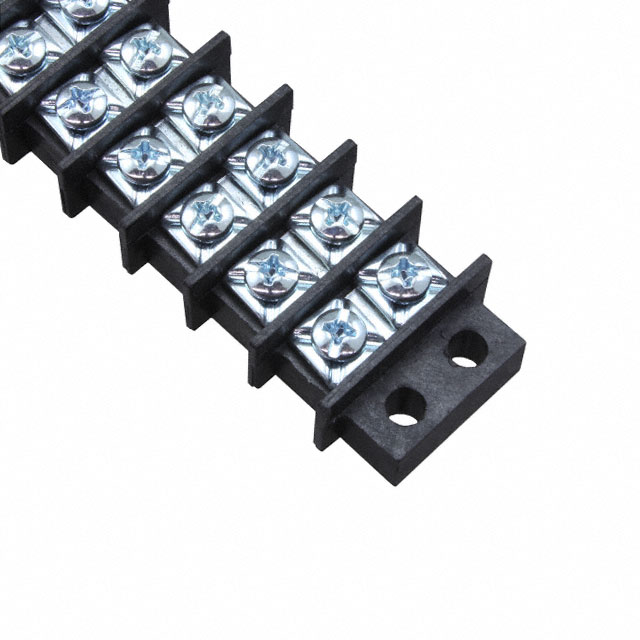

CONN BARRIER STRIP 8CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2008W
ActiveCurtis Industries
CONN BARRIER STRIP 8CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2008W | 2008 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Closed | Closed, Solder Tab, Wire Wrap |
| Current Rating (Amps) | 30 A | 30 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis, Chassis, Panel, Through Hole |
| Number of Circuits [custom] | 8 | 8 |
| Number of Rows | 2 | 2 |
| Number of Wire Entries | 16 | 16 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | - | Tin |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws with Captive Plate | Screws with Solder Lugs, Dual, Screws with Solder Lugs, Single, Screws, Screws with Captive Plate |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.14 | |
| 10 | $ 7.21 | |||
| 25 | $ 6.85 | |||
| 50 | $ 6.22 | |||
| 100 | $ 5.98 | |||
| 250 | $ 5.27 | |||
| 500 | $ 4.92 | |||
| 1000 | $ 4.57 | |||
2008 Series
CONN BARRIER STRIP 8CIRC 0.438"
| Part | Terminal Block Type | Wire Gauge [Max] | Wire Gauge [Min] | Top Termination | Bottom Termination | Number of Rows | Material - Insulation | Features | Material Flammability Rating | Terminal Screw Finish | Barrier Type | Operating Temperature | Pitch [x] | Pitch [x] | Mounting Type | Number of Circuits [custom] | Current Rating (Amps) | Number of Wire Entries | Terminal Screw Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 2008-ST | Barrier Block | 22 AWG | 10 AWG | Screws with Solder Lugs, Dual | Closed | 2 | Polyphenylene Oxide (PPO) | Flange | UL94 V-0 | Tin | 2 Wall (Dual) | 110 °C | 11.12 mm | 0.438 in | Chassis, Panel | 8 | 30 A | 16 | |
Curtis Industries 2008-3/4ST | Barrier Block | 22 AWG | 10 AWG | Screws with Solder Lugs, Single | Closed | 2 | Polyphenylene Oxide (PPO) | Flange | UL94 V-0 | Tin | 2 Wall (Dual) | 110 °C | 11.12 mm | 0.438 in | Chassis, Panel | 8 | 30 A | 16 | |
Curtis Industries 2008-YSY | Barrier Block | 22 AWG | 10 AWG | Screws | Solder Tab | 2 | Polyphenylene Oxide (PPO) | Flange | UL94 V-0 | 2 Wall (Dual) | 110 °C | 11.12 mm | 0.438 in | Chassis, Panel, Through Hole | 8 | 30 A | 16 | ||
Curtis Industries 2008-YWY | Barrier Block | 22 AWG | 10 AWG | Screws | Wire Wrap | 2 | Polyphenylene Oxide (PPO) | Flange | UL94 V-0 | 2 Wall (Dual) | 110 °C | 11.12 mm | 0.438 in | Chassis, Panel, Through Hole | 8 | 30 A | 16 | ||
Curtis Industries 2008W | Barrier Block | 22 AWG | 10 AWG | Screws with Captive Plate | Closed | 2 | Polyphenylene Oxide (PPO) | Flange | UL94 V-0 | 2 Wall (Dual) | 110 °C | 11.12 mm | 0.438 in | Chassis, Panel | 8 | 30 A | 16 | Steel |
Description
General part information
2008 Series
8 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
Documents
Technical documentation and resources
