27MTP00187

Active

Essentra Access Solutions

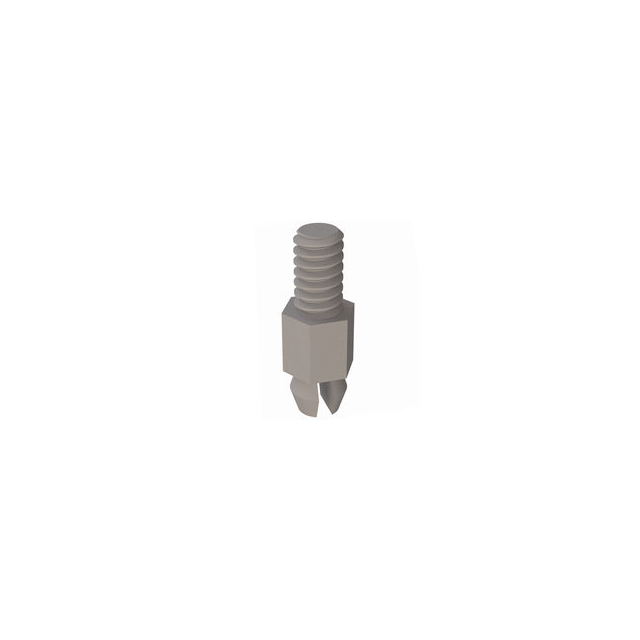

HEX PCB SUPPORT, #6-32 THREADED

Search across all available documentation for this part.

Active

Essentra Access Solutions

HEX PCB SUPPORT, #6-32 THREADED

Technical Specifications

Parameters and characteristics for this part

Specification	27MTP00187

Between Board Height	0.187 in
Between Board Height	0.1875 "
Between Board Height	4.75 mm
Holding Type	Snap Fit
Length - Overall [x]	0.563 in
Length - Overall [x]	14.3 mm
Material	Nylon
Mounting Type	Threaded Stud
Support Hole Diameter [diameter]	0.156 in
Support Hole Diameter [diameter]	3.96 mm
Support Panel Thickness	1.59 mm
Support Panel Thickness	0.063 in

Part	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Holding Type	Length - Overall [x]	Length - Overall [x]	Mounting Type	Between Board Height
Essentra Access Solutions 27MTP00395	Nylon	0.156 in	3.96 mm	1.59 mm	0.063 in	0.395 in	10.03 mm	Snap Fit	0.771 in	19.58 mm	Threaded Stud
Essentra Access Solutions 27MTP00875	Nylon	0.156 in	3.96 mm	1.59 mm	0.063 in	0.875 in	0.875 in	Snap Fit	1.251 in	31.78 mm	Threaded Stud	22.23 mm
Essentra Access Solutions 27MTP00250	Nylon	0.156 in	3.96 mm	1.59 mm	0.063 in	0.25 in	6.35 mm	Snap Fit	0.626 in	15.9 mm	Threaded Stud	0.25 in
Essentra Access Solutions 27MTP00125	Nylon	0.156 in	3.96 mm	1.59 mm	0.063 in	0.125 in	3.18 mm	Snap Fit	0.501 in	12.73 mm	Threaded Stud	0.125 in
Essentra Access Solutions 27MTP00375	Nylon	0.156 in	3.96 mm	1.59 mm	0.063 in	0.375 in	9.53 mm	Snap Fit	0.751 in	19.08 mm	Threaded Stud	0.375 in
Essentra Access Solutions 27MTP00187	Nylon	0.156 in	3.96 mm	1.59 mm	0.063 in	0.187 in	4.75 mm	Snap Fit	0.563 in	14.3 mm	Threaded Stud	0.1875 "
Essentra Access Solutions 27MTP00750	Nylon	0.156 in	3.96 mm	1.59 mm	0.063 in	0.75 in	19.05 mm	Snap Fit	1.126 in	28.6 mm	Threaded Stud	0.75 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Fit / Threaded Stud Nylon 0.187" (4.75mm) 3/16"
