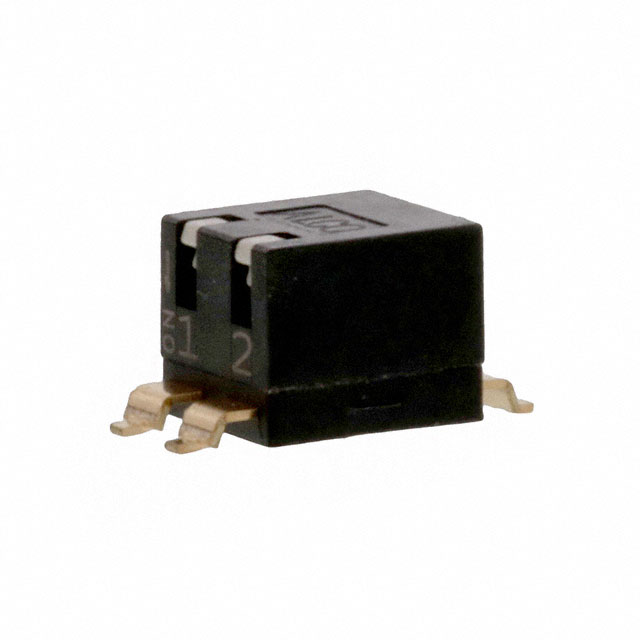

EDSP02SGRNNTR04

Active

TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EDSP02SGRNNTR04

Active

TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDSP02SGRNNTR04

Actuator Level	Flush, Recessed
Actuator Type	Piano
Body Material	Nylon, Polyamide (PA)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Length [x]	0.196 in
Length [x]	4.98 mm
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

EDSP02 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Electrical Life	Actuator Type	Body Material	Mechanical Life	Mounting Type	Actuator Level	Length [x]	Length [x]	Circuit	Height Above Board [z]	Height Above Board [z]	Termination Style	Contact Finish	Voltage Rating	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Current Rating (Amps)
TE Connectivity Raychem Cable Protection EDSP02SGLFNTR04	85 °C	-20 C	Copper Alloy	2000 Steps	Piano	Nylon Polyamide (PA)	2000 Cycles	Surface Mount Right Angle	Raised	0.196 in	4.98 mm	SPST	5 mm	0.197 in	Gull Wing	Gold	24 VDC	0.1 in	Full	2.54 mm	2	25 mA
TE Connectivity Raychem Cable Protection EDSP02SGLFNTU04	85 °C	-20 C	Copper Alloy	2000 Steps	Piano	Nylon Polyamide (PA)	2000 Cycles	Surface Mount Right Angle	Raised	0.196 in	4.98 mm	SPST	5 mm	0.197 in	Gull Wing	Gold	24 VDC	0.1 in	Full	2.54 mm	2	25 mA
TE Connectivity Raychem Cable Protection EDSP02SGRFSTU04	85 °C	-20 C	Copper Alloy	2000 Steps	Piano	Nylon Polyamide (PA)	2000 Cycles	Surface Mount Right Angle	Flush Recessed	0.196 in	4.98 mm	SPST	5 mm	0.197 in	Gull Wing	Gold	24 VDC	0.1 in	Full	2.54 mm	2	25 mA
TE Connectivity Raychem Cable Protection EDSP02SGRNNTR04	85 °C	-20 C	Copper Alloy	2000 Steps	Piano	Nylon Polyamide (PA)	2000 Cycles	Surface Mount Right Angle	Flush Recessed	0.196 in	4.98 mm	SPST	5 mm	0.197 in	Gull Wing	Gold	24 VDC	0.1 in	Full	2.54 mm	2	25 mA
TE Connectivity Raychem Cable Protection EDSP02SGRFNTR04	85 °C	-20 C	Copper Alloy	2000 Steps	Piano	Nylon Polyamide (PA)	2000 Cycles	Surface Mount Right Angle	Flush Recessed	0.196 in	4.98 mm	SPST	5 mm	0.197 in	Gull Wing	Gold	24 VDC	0.1 in	Full	2.54 mm	2	25 mA
TE Connectivity Raychem Cable Protection EDSP02SGLNNTU04	85 °C	-20 C	Copper Alloy	2000 Steps	Piano	Nylon Polyamide (PA)	2000 Cycles	Surface Mount Right Angle	Raised	0.196 in	4.98 mm	SPST	5 mm	0.197 in	Gull Wing	Gold	24 VDC	0.1 in	Full	2.54 mm	2	25 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.14
		10	$ 2.96
		25	$ 2.69
		100	$ 2.33
		250	$ 2.11
	Digi-Reel®	1	$ 3.14
		10	$ 2.96
		25	$ 2.69
		100	$ 2.33
		250	$ 2.11
	Tape & Reel (TR)	700	$ 1.58

Description

General part information

EDSP02 Series

Dip Switch SPST 2 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
