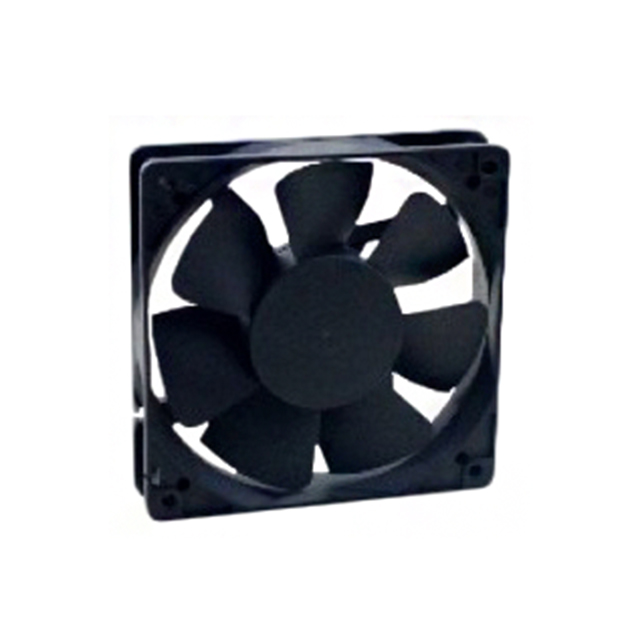

MR1225M24B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 120X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs +1

MR1225M24B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 120X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MR1225M24B1-FSR

Air Flow	3.42 m³/min
Air Flow	122.1 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.38 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	50.5 dB(A)
RPM	4000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	94.6 Pa
Static Pressure	0.38 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	0.275 lb
Weight	124.74 g
Width [y]	25 mm

MR1225 Series

Part	Features	Weight	Weight	Air Flow	Air Flow	Bearing Type	Width [y]	Voltage - Rated	Approval Agency	Material - Frame	Material - Blade	Termination	Size / Dimension [y]	Size / Dimension [x]	RPM	Static Pressure	Static Pressure	Current Rating (Amps)	Fan Type	Noise	Air Flow	Air Flow
Mechatronics Bearing Group MR1225H24B1-FSR	Auto Restart Speed Sensor (Tach)	0.275 lb	124.74 g	136 CFM	3.81 mł/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	3 Wire Leads	120 mm	120 mm	4500 RPM	0.48 in H2O	119.6 Pa	0.41 A	Tubeaxial	53.8 dB(A)
Mechatronics Bearing Group MR1225L24B-FSR	Auto Restart	0.275 lb	124.74 g		107 CFM	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	2 Wire Leads	120 mm	120 mm	3500 RPM	0.29 in H2O	72.2 Pa		Tubeaxial	47.2 dB(A)	3 mł/min
Mechatronics Bearing Group MR1225M24B2-FSR	Auto Restart Locked Rotor Sensor	0.275 lb	124.74 g		3.42 m³/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	3 Wire Leads	120 mm	120 mm	4000 RPM	0.38 in H2O	94.6 Pa	0.38 A	Tubeaxial	50.5 dB(A)		122.1 CFM
Mechatronics Bearing Group MR1225E24B1+6-FSR	Auto Restart PWM Control Speed Sensor (Tach)	0.275 lb	124.74 g		4.23 m³/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	4 Wire Leads	120 mm	120 mm	5000 RPM	0.59 in H2O	147 Pa	600 mA	Tubeaxial	56.6 dB(A)		151 CFM
Mechatronics Bearing Group MR1225L24B1+6-FSR	Auto Restart PWM Control Speed Sensor (Tach)	0.275 lb	124.74 g		3 m³/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	4 Wire Leads	120 mm	120 mm	3500 RPM	0.29 in H2O	72.2 Pa		Tubeaxial	47.2 dB(A)		107 CFM
Mechatronics Bearing Group MR1225M24B-FSR	Auto Restart	0.275 lb	124.74 g		3.42 m³/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	2 Wire Leads	120 mm	120 mm	4000 RPM	0.38 in H2O	94.6 Pa	0.38 A	Tubeaxial	50.5 dB(A)		122.1 CFM
Mechatronics Bearing Group MR1225M24B1-FSR	Auto Restart Speed Sensor (Tach)	0.275 lb	124.74 g		3.42 m³/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	3 Wire Leads	120 mm	120 mm	4000 RPM	0.38 in H2O	94.6 Pa	0.38 A	Tubeaxial	50.5 dB(A)		122.1 CFM
Mechatronics Bearing Group MR1225H24B1+6-FSR	Auto Restart PWM Control Speed Sensor (Tach)	0.275 lb	124.74 g		3.81 mł/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	4 Wire Leads	120 mm	120 mm	4500 RPM	0.48 in H2O	119.6 Pa	0.41 A	Tubeaxial	53.8 dB(A)		136 CFM
Mechatronics Bearing Group MR1225H24B-FSR	Auto Restart	0.275 lb	124.74 g		3.81 mł/min	Ball	25 mm	24 VDC	CE cUL TUV UL	Plastic	Plastic	2 Wire Leads	120 mm	120 mm	4500 RPM	0.48 in H2O	119.6 Pa	0.41 A	Tubeaxial	53.8 dB(A)		136 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	60	$ 14.77

Description

General part information

MR1225 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 122.1 CFM (3.42m³/min) 3 Wire Leads
