A14-70CS

Active

Century Spring Corp

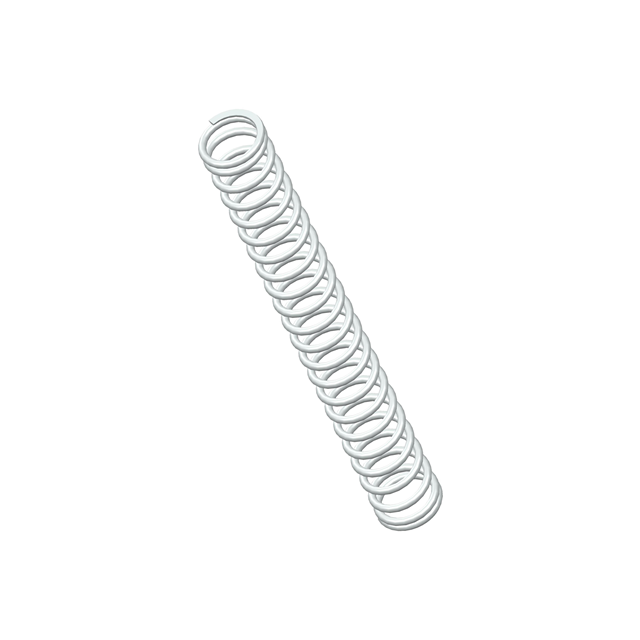

COMP O= .546,L= 4.50,W= .063

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A14-70CS

Active

Century Spring Corp

COMP O= .546,L= 4.50,W= .063

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A14-70CS	A14 Series

Diameter - Inside	-	4.62 mm
Diameter - Inside [diameter]	10.67 mm	0.182 - 18.82 mm
Diameter - Inside [diameter]	0.42 in	0.108 - 0.741 in
Diameter - Outside	-	0.25 in
Diameter - Outside [diameter]	0.546 in	0.125 - 0.875 in
Diameter - Outside [diameter]	13.87 mm	3.18 - 22.23 mm
End Style	Ground, Closed	Ground, Closed
Finish	None	None, Gold Iridite, Zinc
Free Length	4.5 in	0.31 - 4.5 in
Free Length	114.3 mm	7.87 - 114.3 mm
Load	-	2.1 lbs
Material	Stainless Steel	Stainless Steel, Spring Steel, Music Wire
Rate	8.6 lbs/in	0.26 - 316 lbs/in
Type	-	Compression
Wire Diameter	0.063 in	0.016 - 0.13 in
Wire Diameter	1.6 mm	0.032 - 3.3 mm
Wire Diameter	-	0.43 - 1.12 mm
Wire Diameter	-	0.017 - 0.067 "
Wire Diameter	-	0.81 mm
Wire Diameter	-	0.024 "

A14 Series

COMP O= .312,L= .44,W= .038

Part	Rate	Free Length	Free Length	Wire Diameter [diameter]	Wire Diameter [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	End Style	Finish	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter	Wire Diameter	Diameter - Inside [diameter]	Type	Diameter - Outside [diameter]	Load	Wire Diameter
Century Spring Corp A14-25CS	39 lbs/in	0.44 in	11.18 mm	0.97 mm	0.038 "	0.236 in	5.99 mm	Closed, Ground	None	Stainless Steel	7.92 mm	0.312 in
Century Spring Corp A14-5CS	0.26 lbs/in	0.5 in	12.7 mm			0.168 in	4.27 mm	Closed	None	Stainless Steel	4.78 mm	0.188 "
Century Spring Corp A14-32CS	16 lbs/in	0.75 in	19.05 mm			0.375 in	9.53 mm	Closed, Ground	None	Spring Steel	11.51 mm	0.453 in	0.039 in	0.99 mm
Century Spring Corp A14-28CS	30 lbs/in	0.63 in	16 mm				0.182 in	Closed, Ground	Gold Iridite	Spring Steel	6.35 mm		0.034 in	0.86 mm	4.62 mm	Compression	0.25 in
Century Spring Corp A14-67CS	23 lbs/in	0.88 in	22.35 mm			0.636 in	16.15 mm	Closed, Ground	Gold Iridite	Spring Steel	19.05 mm	0.75 in	0.057 "	1.45 mm
Century Spring Corp A14-7CS	2 lbs/in			0.43 mm	0.017 "				None	Music Wire	3.3 mm	0.13 "						2.1 lbs
Century Spring Corp A14-24CS	65 lbs/in	0.53 in	13.46 mm			0.108 in	2.74 mm	Closed, Ground	Gold Iridite	Music Wire	4.37 mm	0.172 in		0.032 in					0.81 mm
Century Spring Corp A14-70CS	8.6 lbs/in	4.5 in	114.3 mm			0.42 in	10.67 mm	Closed, Ground	None	Stainless Steel	13.87 mm	0.546 in	0.063 in	1.6 mm
Century Spring Corp A14-69CS	19 lbs/in	1.19 in	30.23 mm			0.53 in	13.46 mm	Closed, Ground	None	Stainless Steel	16.25 mm	0.64 in	0.055 in	1.4 mm
Century Spring Corp A14-4CS	74 lbs/in	0.56 in	14.22 mm			0.401 in	10.19 mm	Closed, Ground	Gold Iridite	Spring Steel	13.08 mm	0.515 "	0.057 "	1.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.49
		50	$ 5.22
		150	$ 4.94
		300	$ 4.67
		500	$ 4.12

Description

General part information

A14 Series

COMP O= .546,L= 4.50,W= .063
