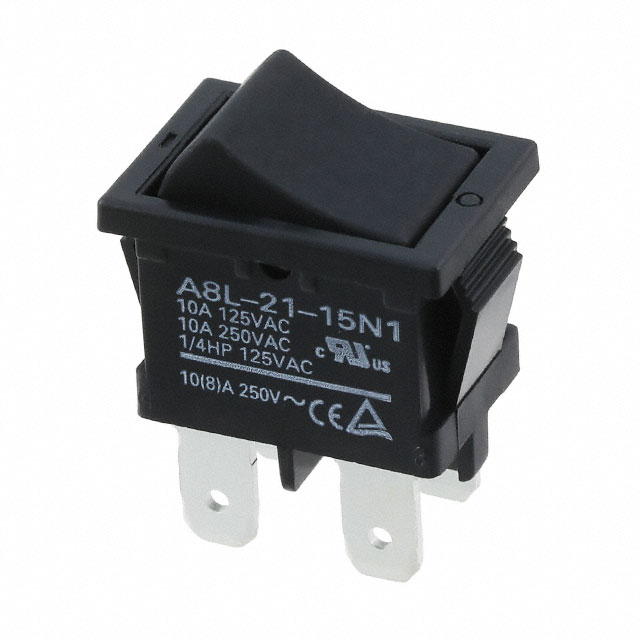

A8L-21-15N1
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 10A 125V
A8L-21-15N1
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 10A 125V
Description
General part information
A8L-21-15 Series
Rocker Switch DPST 10A (AC) 125 V Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | A8L-21-15N1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus, UL, EN |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating | 10 A |
| Electrical Life (Cycles) | 10000 Cycles |
| Mechanical Life (Cycles) | 50000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Length | 19.2 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 12.9 mm |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
