629-3W3-640-1T1

Active

EDAC Inc.

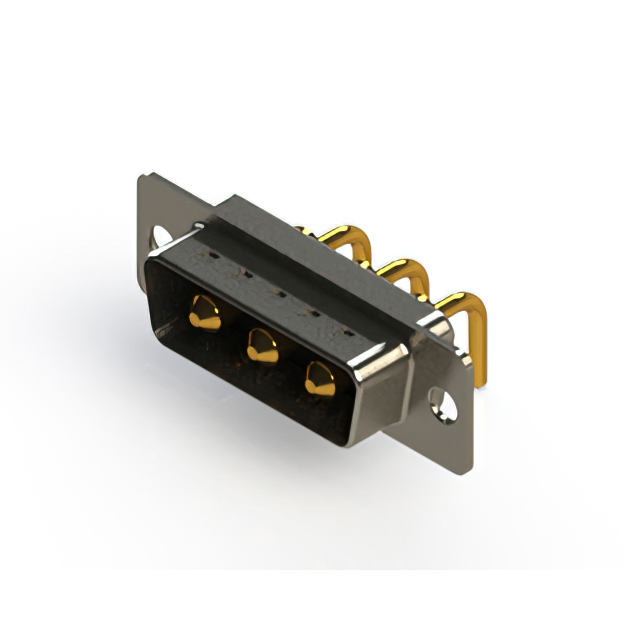

D SUBMINIATURE CONNECTOR, 3 CONTACT(S), MALE, 0.27 INCH PITCH, SOLDER TERMINAL, HOLE .12, PLUG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-3W3-640-1T1

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 3 CONTACT(S), MALE, 0.27 INCH PITCH, SOLDER TERMINAL, HOLE .12, PLUG,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-3W3-640-1T1

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	10 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder
Voltage Rating	125 VDC

629-3W3 Series

...

Part	Contact Type	Contact Material	Flange Feature	Color	Backset Spacing	Backset Spacing	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows	Voltage Rating	Mounting Type	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Connector Style	Material Flammability Rating	Dielectric Material	Features	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 629-3W3-640-4T2	Power	Copper Alloy	Housing/Shell (4-40)	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3	0.76 Ám	30 Áin	Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	40 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic
EDAC Inc. 629-3W3-650-3T4	Power	Copper Alloy	Housing/Shell (4-40)	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3	0.76 Ám	30 Áin	Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	30 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Grounding Indents Mounting Brackets
EDAC Inc. 629-3W3-640-1T1	Power	Copper Alloy	Housing/Shell (Unthreaded)	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3	0.76 Ám	30 Áin	Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	10 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Grounding Indents Shielded
EDAC Inc. 629-3W3-250-3TE	Power	Copper Alloy	M3	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3			Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	30 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Grounding Indents Mounting Brackets	Flash
EDAC Inc. 629-3W3-250-3NC	Power	Copper Alloy	Housing/Shell (M3)	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3			Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	30 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Grounding Indents Mounting Brackets	Flash	Nickel Plated Steel
EDAC Inc. 629-3W3-240-3TE	Power	Copper Alloy	M3	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3			Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	30 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Grounding Indents Mounting Brackets	Flash
EDAC Inc. 629-3W3-240-2TB	Power	Copper Alloy	Housing/Shell (M3)	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3			Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	20 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Board Lock Grounding Indents Mounting Brackets	Flash
EDAC Inc. 629-3W3-240-3TD	Power	Copper Alloy	M3	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3			Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	30 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Board Lock Grounding Indents Mounting Brackets	Flash
EDAC Inc. 629-3W3-650-4TD	Power	Copper Alloy	M3	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3	0.76 Ám	30 Áin	Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	40 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Board Lock Grounding Indents Mounting Brackets
EDAC Inc. 629-3W3-250-4T3	Power	Copper Alloy	Housing/Shell (4-40)	Black	13.2 mm	0.52 "	3	2 (DA A)	3W3			Solder	1	125 VDC	Through Hole Right Angle	Male Pins Plug	40 A	-55 °C	125 °C	Gold	Combo D-Sub	UL94 V-0	Polyester Thermoplastic	Board Lock Grounding Indents Mounting Brackets	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 9.85

Description

General part information

629-3W3 Series

3 (Power) Position D-Sub, Combo Plug, Male Pins Connector
