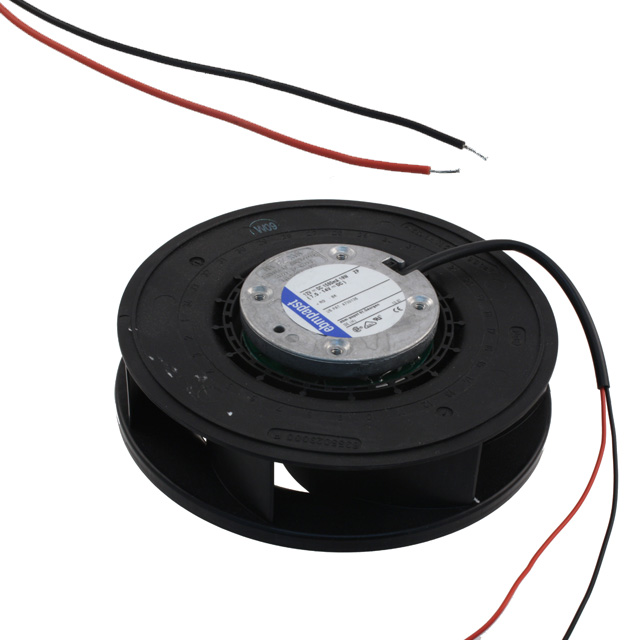

RER160-28/12N

Active

ebm-papst Inc.

FAN IMP MTRZD 176X54MM 12VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlatPak® to Motorized Impeller Cross Ref Datasheet

RER160-28/12N

Active

ebm-papst Inc.

FAN IMP MTRZD 176X54MM 12VDC

Deep-Dive with AI

DocumentsFlatPak® to Motorized Impeller Cross Ref Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RER160-28/12N

Air Flow	132.4 CFM
Air Flow	3.71 m³/min
Bearing Type	Ball
Fan Type	Motorized Impellers
Lifetime @ Temp.	75000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Noise	58 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	19 W
RPM	3000 RPM
Size / Dimension [diameter]	176 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	7 V
Weight	589.7 g
Weight	1.3 lbs
Width [y]	54 mm

RER160 Series

Part	Fan Type	Weight	Weight	Width [y]	RPM	Bearing Type	Approval Agency	Air Flow	Air Flow	Lifetime @ Temp.	Material - Blade	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Size / Dimension [diameter]	Power (Watts)	Termination	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max]	Ingress Protection	Voltage - Rated [custom]	Air Flow	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]
ebm-papst Inc. RER160-28/56S	Motorized Impellers	997.9 g	2.2 lbs	54 mm	2800 RPM	Ball	CE CSA UL VDE	137.7 CFM	3.86 m³/min	30000 Hrs	Plastic Fiberglass Reinforced	230 VAC	60 °C	-30 ░C	-30 °C	60 °C	68 dB	176 mm	45 W	2 Wire Leads
ebm-papst Inc. RER160-28/18NTDAU	Motorized Impellers	680.4 g	1.5 lb	50.3 mm	4200 RPM	Ball	UL	217 CFM	6.08 m³/min				60 °C	-20 C	-20 °C			165.1 mm	51 W	2 Wire Leads	38 VDC	57 VDC	60 °C	IP68 - Dust Tight Waterproof	48 VDC
ebm-papst Inc. RER160-28/12N	Motorized Impellers	589.7 g	1.3 lbs	54 mm	3000 RPM	Ball			132.4 CFM	75000 Hrs	Plastic Fiberglass Reinforced	12 VDC	70 °C	-20 C	-20 °C		58 dB(A)	176 mm	19 W	2 Wire Leads	7 V	14 V	70 °C			3.71 m³/min
ebm-papst Inc. RER1602814N2TDA	Motorized Impellers			50.3 mm	4200 RPM	Ball		217.8 CFM	6.1 m³/min	55000 Hrs	Plastic Fiberglass Reinforced	24 VDC	60 °C	-20 C	-20 °C			165.1 mm	51 W	2 Wire Leads	16 VDC	28 VDC	60 °C
ebm-papst Inc. RER160-28/14N	Motorized Impellers	589.7 g	1.3 lbs	54 mm	3000 RPM	Ball		150.1 CFM	4.2 mł/min	75000 Hrs	Plastic Fiberglass Reinforced	24 VDC	70 °C	-20 C	-20 °C		58 dB(A)	176 mm	19 W	2 Wire Leads	12 VDC	28 VDC	70 °C
ebm-papst Inc. RER160-28/06S	Motorized Impellers	997.9 g	2.2 lbs	54 mm	3250 RPM	Ball		161.3 CFM	4.52 m³/min	30000 Hrs	Plastic Fiberglass Reinforced	115 VAC					68 dB	176 mm	46 W	2 Wire Leads							-30 °C	-22 °F	70 °C	158 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.19

Description

General part information

RER160 Series

Fan Motorized Impellers 12VDC Round - 176mm Dia Ball 132.4 CFM (3.71m³/min) 2 Wire Leads
