ERA.3S.410.CTL
ActiveLEMO

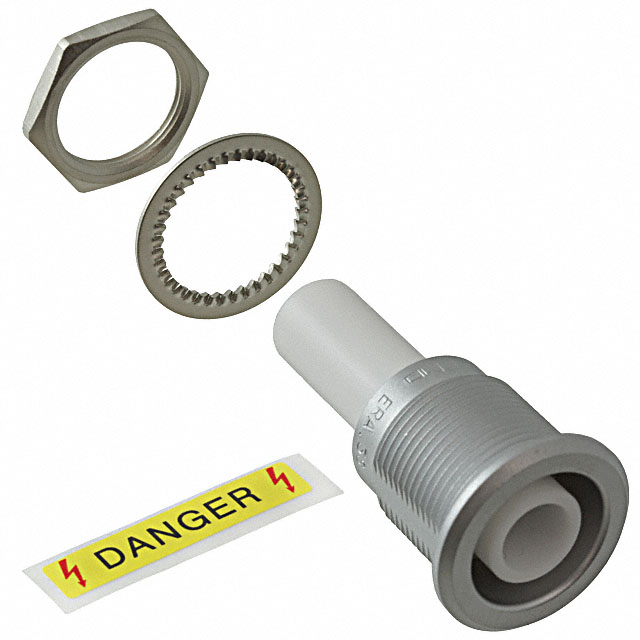

CONN RCPT FMALE 1P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERA.3S.410.CTL
ActiveLEMO
CONN RCPT FMALE 1P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERA.3S.410.CTL | ERA.3S Series |
|---|---|---|
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 165, 115A, RG-11A, 213, 144, 8232A, 9267, 9222, Belden 8215 |
| Center Contact Material | - | Brass, Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver |
| Connector Style | - | Coaxial, Triaxial |
| Connector Type | Receptacle, Female Sockets | Female Sockets, Male Pins, Receptacle, Male Pin, Female Socket, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze | Bronze, Brass |
| Contact Termination | - | Solder Cup |
| Current Rating (Amps) | 7 A | 3 - 43 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | - | Silver |
| Impedance | - | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polytetrafluoroethylene (PTFE) | Polyetheretherketone (PEEK), Fluorinated Ethylene Propylene (FEP), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | - | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | - | 1 |
| Number of Positions | 1 | 1 - 18 |
| Number of Positions | - | 16 |
| Number of Positions | - | 5 |
| Number of Positions | - | 1 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 410 | 140 - 805 |
| Shield Termination | - | Solder |
| Shielding | Shielded | Shielded |
ERA.3S Series
CONN CIRC RCPT 16P GOLD SLDR CUP
| Part | Shielding | Fastening Type | Material Flammability Rating | Connector Type | Shell Finish | Current Rating (Amps) | Contact Finish - Mating | Number of Positions | Ingress Protection | Shell Material | Insert Material | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Contact Material | Mounting Feature | Shell Size - Insert | Color | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Contact Termination | Center Contact Material | Impedance | Housing Color | Dielectric Material | Body Finish | Body Material | Includes | Mating Cycles | Connector Style | Shield Termination | Cable Group | Center Contact Plating | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERA.3S.316.CLL | Shielded | Push-Pull | UL94 V-0 | Female Sockets, Male Pins, Receptacle | Chrome | 7 A | Gold | 16 | IP50 | Brass | Polyetheretherketone (PEEK) | Metal | -55 °C | 250 °C | Keyed | Brass, Bronze | Bulkhead - Rear Side Nut | 316 | Silver | |||||||||||||||||
LEMO ERA.3S.805.CTL1 | Shielded | Push-Pull | Female Sockets, Male Pins, Receptacle | Chrome | 8 A | Gold | IP50 | Brass | Fluorinated Ethylene Propylene (FEP) | Metal | -55 °C | 250 °C | Keyed | Brass, Bronze | Bulkhead - Rear Side Nut | 805 | Silver | 5 | 1 | 6 | ||||||||||||||||
LEMO ERA.3S.250.CTA | Push-Pull | Male Pin, Receptacle | IP50 | -55 °C | 250 °C | Bulkhead - Rear Side Nut | Solder Cup | Brass | 50 Ohms | Silver | Polytetrafluoroethylene (PTFE) | Chrome | Brass | 1 Connector, 1 Lockwasher, 1 Nut | 1000 | Coaxial | Solder | 115A, 144, 165, 213, RG-11A | Gold | |||||||||||||||||
LEMO ERA.3S.707.CLL | Shielded | Push-Pull | UL94 V-0 | Female Sockets, Male Pins, Receptacle | Chrome | 3 A, 8 A | Gold | IP50 | Brass | Polyetheretherketone (PEEK) | Metal | -55 °C | 250 °C | Keyed | Brass, Bronze | Bulkhead - Rear Side Nut | 707 | Silver | 8 | |||||||||||||||||
LEMO ERA.3S.307.CLL | Shielded | Push-Pull | UL94 V-0 | Female Sockets, Male Pins, Receptacle | Chrome | 12 A | Gold | IP50 | Brass | Polyetheretherketone (PEEK) | Metal | -55 °C | 250 °C | Keyed | Brass, Bronze | Bulkhead - Rear Side Nut | 307 | Silver | 7 | |||||||||||||||||
LEMO ERA.3S.250.CTL | Push-Pull | Female Socket, Receptacle | IP50 | -55 °C | 250 °C | Bulkhead - Rear Side Nut | Solder Cup | Beryllium Copper | 50 Ohms | Silver | Polytetrafluoroethylene (PTFE) | Chrome | Brass | 1 Connector, 1 Lockwasher, 1 Nut | 1000 | Coaxial | Solder | 115A, 144, 165, 213, RG-11A | Gold | 1 | ||||||||||||||||
LEMO ERA.3S.405.CTL | Shielded | Push-Pull | Receptacle, Female Sockets | Chrome | 8 A | Gold | IP50 | Brass | Polytetrafluoroethylene (PTFE) | Metal | -55 °C | 250 °C | Keyed | Bronze | Bulkhead - Rear Side Nut | 405 | Silver | 1 | ||||||||||||||||||
LEMO ERA.3S.805.CLL2 | Shielded | Push-Pull | UL94 V-0 | Female Sockets, Male Pins, Receptacle | Chrome | 8 A | Gold | IP50 | Brass | Polyetheretherketone (PEEK) | Metal | -55 °C | 250 °C | Keyed | Brass, Bronze | Bulkhead - Rear Side Nut | 805 | Silver | 5 | 1 | 6 | |||||||||||||||
LEMO ERA.3S.305.CLL | Shielded | Push-Pull | UL94 V-0 | Female Sockets, Male Pins, Receptacle | Chrome | 14 A, 18 A | Gold | IP50 | Brass | Polyetheretherketone (PEEK) | Metal | -55 °C | 250 °C | Keyed | Brass, Bronze | Bulkhead - Rear Side Nut | 305 | Silver | ||||||||||||||||||
LEMO ERA.3S.410.CTL | Shielded | Push-Pull | Receptacle, Female Sockets | Chrome | 7 A | Gold | IP50 | Brass | Polytetrafluoroethylene (PTFE) | Metal | -55 °C | 250 °C | Keyed | Bronze | Bulkhead - Rear Side Nut | 410 | Silver | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 75.32 | |
| 10 | $ 69.12 | |||
| 25 | $ 66.46 | |||
| 50 | $ 64.25 | |||
| 100 | $ 60.70 | |||
Description
General part information
ERA.3S Series
1 Position Circular Connector Receptacle, Female Sockets Solder Cup
