ERA.3S.405.CTL

Active

LEMO

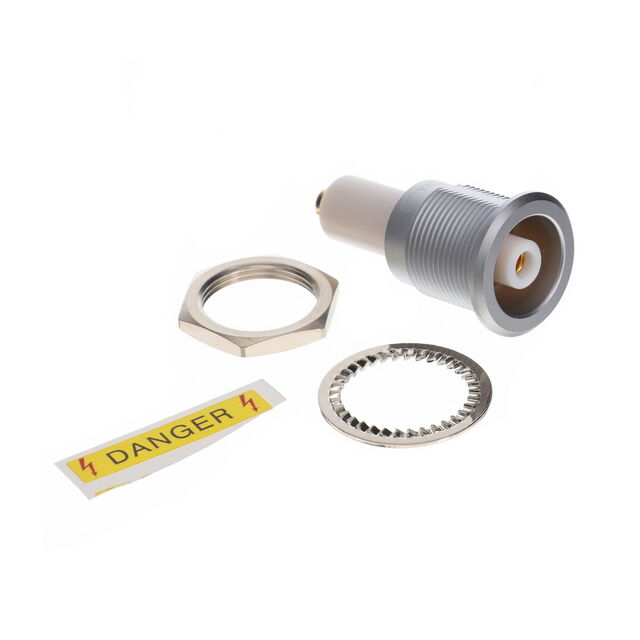

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.3S.405.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.92
		10	$ 55.90
		25	$ 53.75
		50	$ 51.96
		100	$ 49.09

Description

General part information

ERA.3S Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.3S.405.CTL	ERA.3S Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	165, 115A, RG-11A, 213, 144, 8232A, 9267, 9222, Belden 8215
Center Contact Material	-	Brass, Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial, Triaxial
Connector Type	Receptacle, Female Sockets	Female Sockets, Male Pins, Receptacle, Male Pin, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	8 A	3 - 43 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polytetrafluoroethylene (PTFE)	Polyetheretherketone (PEEK), Fluorinated Ethylene Propylene (FEP), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	1	1 - 18
Number of Positions	-	16
Number of Positions	-	5
Number of Positions	-	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	405	140 - 805
Shield Termination	-	Solder
Shielding	Shielded	Shielded
