BAT6202VH6327XTSA1

Active

Infineon Technologies

DIODE RF SCHOTTKY 2-PIN SC-79 T/R

Search across all available documentation for this part.

Active

Infineon Technologies

DIODE RF SCHOTTKY 2-PIN SC-79 T/R

Technical Specifications

Parameters and characteristics for this part

Specification	BAT6202VH6327XTSA1

Capacitance @ Vr, F	0.6 pF
Current - Average Rectified (Io)	20 mA
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C

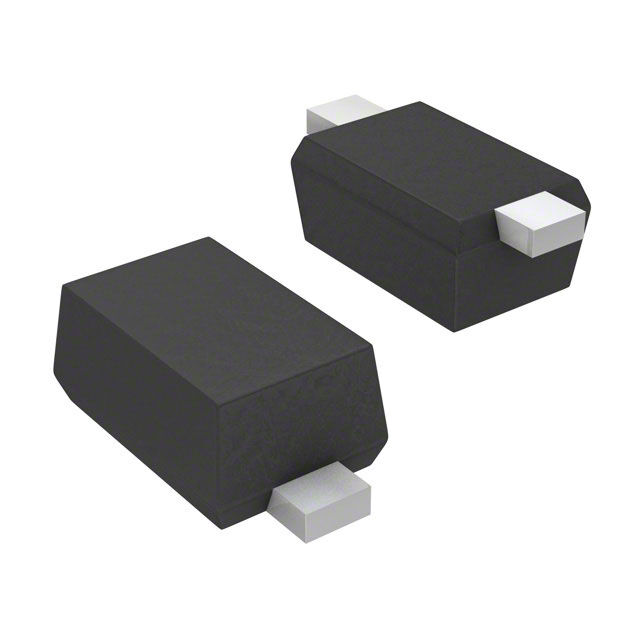

Package / Case	SC-79, SOD-523
Speed	Any Speed
Speed	200 mA
Supplier Device Package	PG-SC79-2-1
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Speed	Speed	Capacitance @ Vr, F	Technology	Operating Temperature - Junction	Supplier Device Package
Infineon Technologies BAT6202VH6327XTSA1	20 mA	10 µA	40 V	SC-79 SOD-523	1 V	Surface Mount	Any Speed	200 mA	0.6 pF	Schottky	150 °C	PG-SC79-2-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 20mA Surface Mount PG-SC79-2-1
