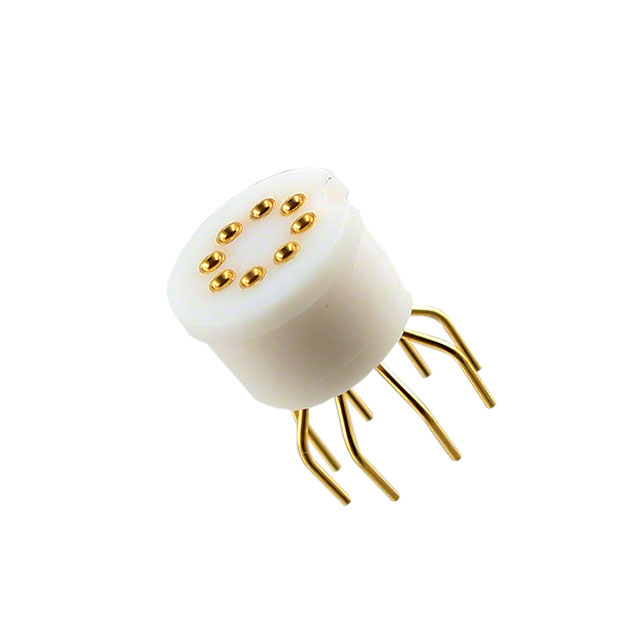

3-1437508-6

Obsolete

TE Connectivity Raychem Cable Protection

TRANSISTOR SOCKET, ROHS COMPLIANT

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

TRANSISTOR SOCKET, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	3-1437508-6

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Features	Closed Frame
Housing Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Type	Transistor, TO-5

Part	Contact Finish - Post	Housing Material	Contact Material - Mating	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Number of Positions or Pins (Grid)	Features	Termination	Contact Material - Post [custom]	Material Flammability Rating
TE Connectivity Raychem Cable Protection 3-1437508-1	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Transistor TO-5	-55 °C	125 °C	Through Hole	Gold	8	Closed Frame	Solder	Brass
TE Connectivity Raychem Cable Protection 9-1437508-5	Tin	Polyamide (PA) Nylon Glass Filled	Beryllium Copper	Transistor TO-5	-55 °C	125 °C	Through Hole	Gold	4	Closed Frame	Solder	Brass	UL94 V-0
TE Connectivity Raychem Cable Protection 3-1437508-6	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Transistor TO-5	-55 °C	125 °C	Through Hole	Gold	8	Closed Frame	Solder	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (Round) Pos Transistor, TO-5 Socket Gold Through Hole
