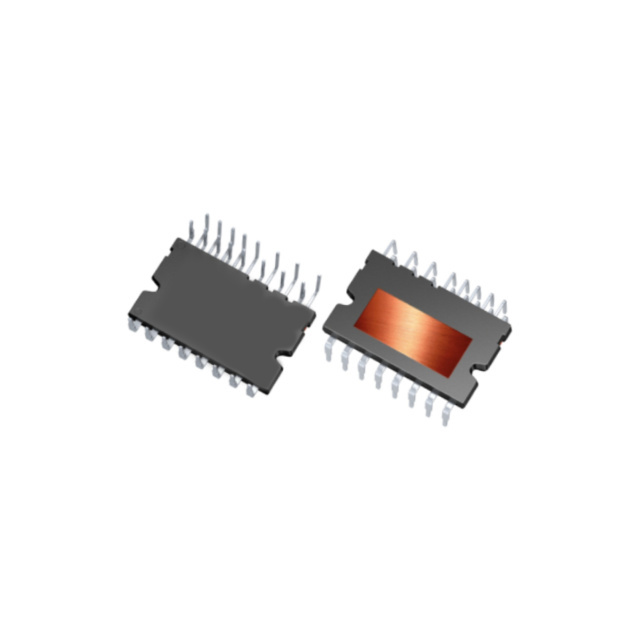

IM828XCCXKMA1

Active

Infineon Technologies

THE IM828-XCC IS A CIPOS™ MAXI 1200 V, 20 A THREE-PHASE COOLSIC™ MOSFET BASED INTELLIGENT POWER MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IM828XCCXKMA1

Active

Infineon Technologies

THE IM828-XCC IS A CIPOS™ MAXI 1200 V, 20 A THREE-PHASE COOLSIC™ MOSFET BASED INTELLIGENT POWER MODULE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IM828XCCXKMA1

Configuration	3 Phase Inverter
Mounting Type	Through Hole
Type	IGBT
Voltage	1.2 kV
Voltage - Isolation	2500 Vrms

IM828 Series

Part	Voltage - Isolation	Voltage	Configuration	Type	Mounting Type
Infineon Technologies IM828XCCXKMA1	2500 Vrms	1.2 kV	3 Phase Inverter	IGBT	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 99.43
Digikey	Tube	1	$ 90.75
		14	$ 73.05
Newark	Each	1	$ 93.44
		5	$ 87.62
		10	$ 81.80
		25	$ 75.97

Description

General part information

IM828 Series

IM828XCCXKMA1 is a CIPOS™ Maxi 1200V, 20A three-phase intelligent power module. This CIPOS™ Maxi 1200V, 20A three-phase CoolSiC™ MOSFET based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for industrial applications including industrial drives, HVAC, active filters, motor controls and etc. Also suitable for Commercial HVAC EV charging, general purpose motor drive - variating frequency and voltage, heating ventilation and air conditioning (HVAC), industrial motor drives and controls.
