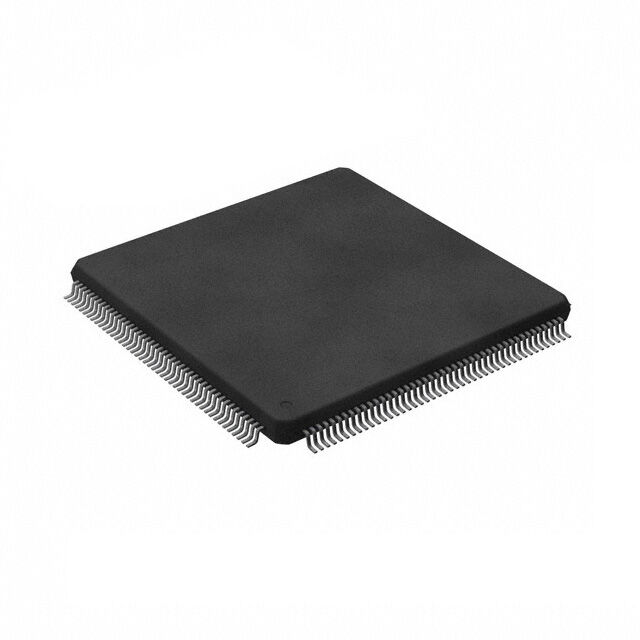

CY9BF116TPMC-GK7FKCGE1

Active

Infineon Technologies

IC MCU 32BIT 512KB FLASH 176LQFP

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32BIT 512KB FLASH 176LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	CY9BF116TPMC-GK7FKCGE1

Connectivity	I2C, LINbus, UART/USART, CSIO, EBI/EMI
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit
Data Converters [custom]	12
Data Converters [custom]	24
Mounting Type	Surface Mount
Number of I/O	154
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	176-LQFP
Peripherals	DMA, LVD, PWM, POR, WDT
Program Memory Size	512 KB
Program Memory Type	FLASH
RAM Size	64 K
Speed	144 MHz
Supplier Device Package	176-LQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Number of I/O	Program Memory Type	Connectivity	Speed	Program Memory Size	Supplier Device Package	Peripherals	Core Processor	RAM Size	Oscillator Type	EEPROM Size	Core Size	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]
Infineon Technologies CY9BF116RPMC-G-F4FKE1	85 °C	-40 °C	120-LQFP	2.7 V	5.5 V	Surface Mount	103	FLASH	CSIO EBI/EMI I2C LINbus UART/USART	144 MHz	512 KB	120-LQFP (16x16)	DMA LVD POR PWM WDT	ARM® Cortex®-M3	64 K	Internal	32 K	32-Bit	16	12 b
Infineon Technologies CY9BF116TPMC-GK7FKCGE1	85 °C	-40 °C	176-LQFP	2.7 V	5.5 V	Surface Mount	154	FLASH	CSIO EBI/EMI I2C LINbus UART/USART	144 MHz	512 KB	176-LQFP (24x24)	DMA LVD POR PWM WDT	ARM® Cortex®-M3	64 K	Internal		32-Bit	24		12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 11.12

General part information

ARM® Cortex®-M3 FM3 MB9B110T Microcontroller IC 32-Bit 144MHz 512KB (512K x 8) FLASH 176-LQFP (24x24)
