165X17349X

Active

Amphenol CONEC

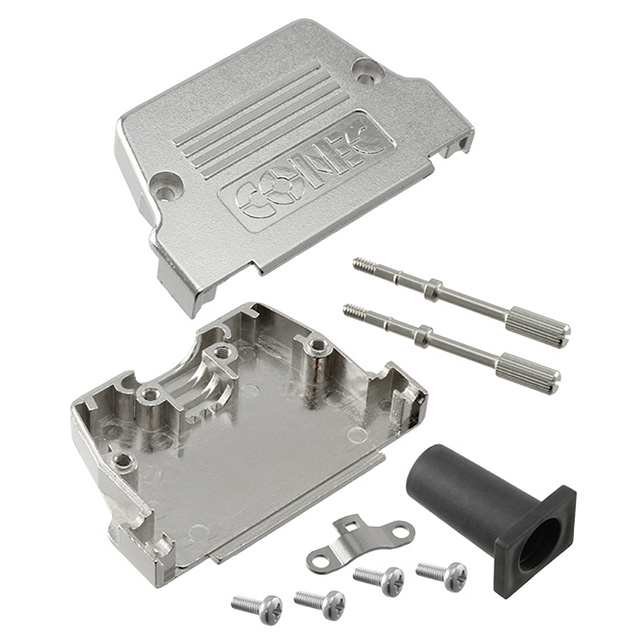

D SUB BACKSHELL, 180DEG, DD, ZINC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB BACKSHELL, 180DEG, DD, ZINC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	165X17349X

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Compatible D-Sub Size	50pos, HD78pos
Compatible Shell Size	D
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Metal, Zinc
Number of Positions	50
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

Part	Plating	Compatible Shell Size	Cable Type	Number of Positions	Material	Hardware	Compatible D-Sub Size	Features	Shielding	Cable Exit	Primary Material	Accessory Type	Color
Amphenol CONEC 165X17369X	Nickel	A	Round	15	Metal Zinc	Assembly Hardware Strain Relief	15pos HD26pos	Mating Screws M3	Shielded	180 °	Metal	Two Piece Backshell
Amphenol CONEC 165X17399X	Nickel	D	Round	50	Metal Zinc	Assembly Hardware Strain Relief	50pos HD78pos	Mating Screws M3	Shielded	180 °	Metal	Two Piece Backshell
Amphenol CONEC 165X17309X	Nickel	E	Round	9	Metal Zinc		9pos HD15pos	Mating Screws 4-40	Shielded	180 °	Metal	Two Piece Backshell	Silver
Amphenol CONEC 165X17389X	Nickel	C	Round	37	Metal Zinc	Assembly Hardware Strain Relief	37pos HD62pos	Mating Screws M3	Shielded	180 °	Metal	Two Piece Backshell
Amphenol CONEC 165X17329X	Nickel	B	Round		Metal Zinc		25pos HD44pos	Mating Screws 4-40	Shielded	180 °	Metal	Two Piece Backshell
Amphenol CONEC 165X17379X	Nickel	B	Round		Metal Zinc	Assembly Hardware Strain Relief	25pos HD44pos	Mating Screws M3	Shielded	180 °	Metal	Two Piece Backshell
Amphenol CONEC 165X17359X	Nickel	E	Round	9	Metal Zinc	Assembly Hardware Strain Relief	9pos HD15pos	Mating Screws M3	Shielded	180 °	Metal	Two Piece Backshell
Amphenol CONEC 165X17349X	Nickel	D	Round	50	Metal Zinc	Assembly Hardware Strain Relief	50pos HD78pos	Mating Screws 4-40	Shielded	180 °	Metal	Two Piece Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Two Piece Backshell Connector 180° Shielded
