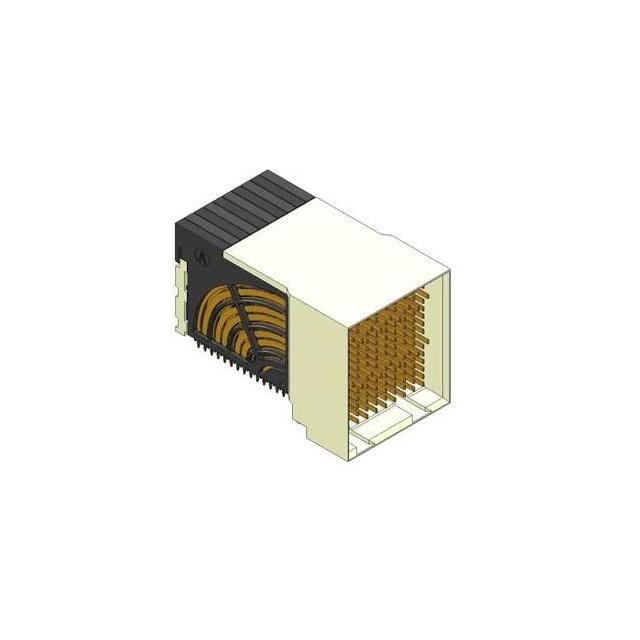

10123536-102LF

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 120POS EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 120POS EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10123536-102LF

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

Part	Number of Rows	Mounting Type	Connector Style	Connector Type	Number of Columns	Termination	Connector Usage	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish	Color	Number of Positions	Number of Positions Loaded
Amphenol ICC (FCI) 10123536-102LF	12	Board Edge Right Angle Through Hole	High Speed	Header Male Pins	10	Press-Fit	Daughtercard	85 °C	-55 °C	UL94 V-0	Gold	Black	120	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Black High Speed
