EN2P7F26P

Active

Switchcraft Inc.

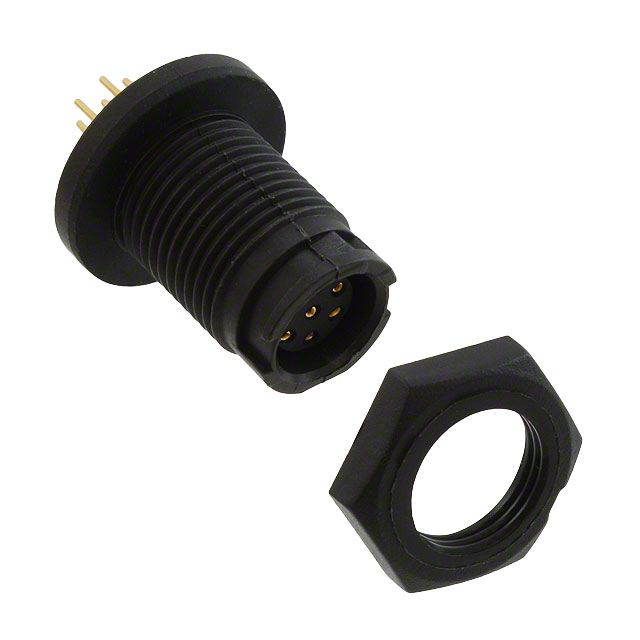

CONN RCPT FMALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2P7F26P	EN2P7F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	7	7
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Number of Positions	Shielding	Termination	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Material	Mounting Type	Voltage Rating	Material Flammability Rating	Connector Type	Primary Material	Mounting Feature	Fastening Type	Applications	Insert Material	Color	Ingress Protection
Switchcraft Inc. EN2P7F26P	7	Unshielded	Solder	Gold	85 °C	-40 °C	Keyed	Copper Alloy	Panel Mount, Through Hole	125 VAC	UL94 V-0	Receptacle, Female Sockets	Plastic	Bulkhead - Front Side Nut	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	Elastomer	Black	IP66, IP67, IP68
Switchcraft Inc. EN2P7F26	7	Unshielded	Crimp, Solder Cup	Gold	85 °C	-40 °C	Keyed	Copper Alloy		125 VAC	UL94 V-0	Receptacle, Female Sockets	Plastic	Bulkhead - Front Side Nut	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	Elastomer	Black	IP66, IP67, IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources
