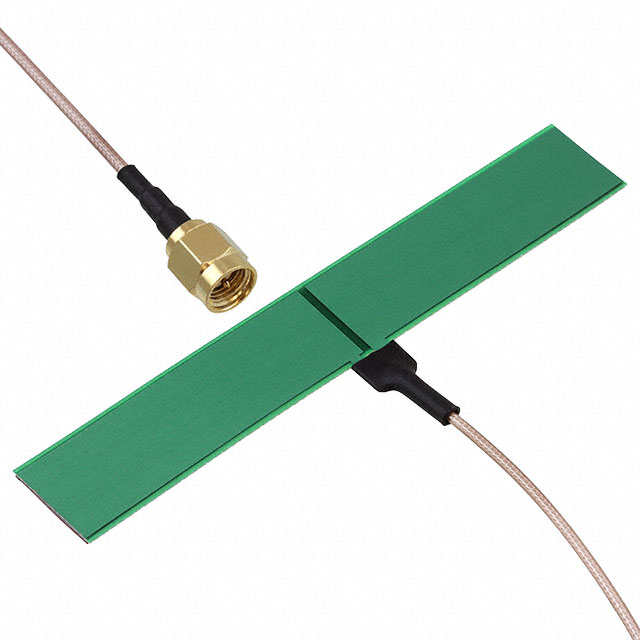

TPCB02593-12-AM-AGDP-L

Active

Nearson Inc.

ANTENNA EMBEDDED MICROSTRIPE R/A

Search across all available documentation for this part.

Active

Nearson Inc.

ANTENNA EMBEDDED MICROSTRIPE R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

ANTENNA EMBEDDED MICROSTRIPE R/A

Part	Frequency (Center/Band)	Number of Bands	Frequency Range [Min]	Frequency Range [Max]	Gain	Antenna Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Termination	VSWR
Nearson Inc. TPCB02593-6-RMM-AGDP-L	1.85 GHz, 892 MHz	4	1.71 GHz, 824 MHz	1.99 GHz, 960 MHz	0 dBi, 2 dBic	PCB Trace	0.016 in	0.4 mm	SMA	2
Nearson Inc. TPCB02593-12-AM-AGDP-L	1.85 GHz, 892 MHz	4	1.71 GHz, 824 MHz	1.99 GHz, 960 MHz	0 dBi, 2 dBic	PCB Trace	0.016 in	0.4 mm		2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA PCB Trace MMCX

Technical documentation and resources

No documents available
