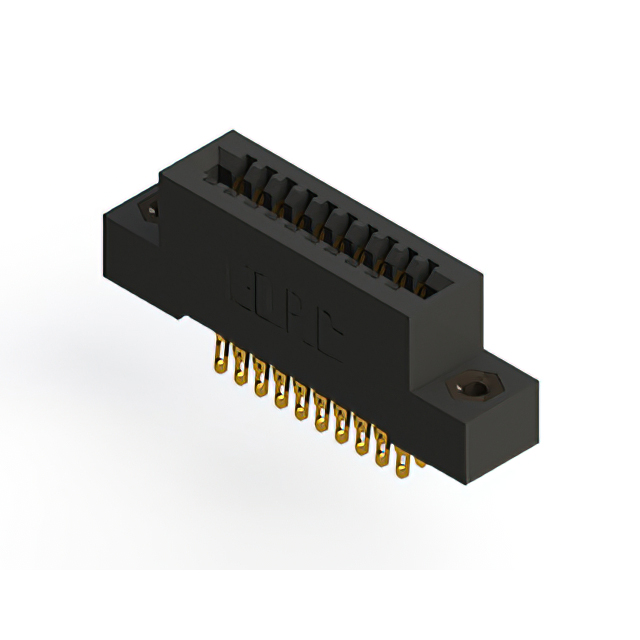

892-020-555-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-020-555-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-020-555-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-020 Series

...

Part	Gender	Termination	Contact Finish	Mounting Type	Read Out	Card Type	Termination Rows	Features	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Flange Feature	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-020-555-208	Female	Solder	Gold	Board Edge Straddle Mount	Dual	Non Specified - Dual Edge	2	Card Extender	10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	125 °C	-40 °C
EDAC Inc. 892-020-542-201	Female	Wire Wrap	Gold	Through Hole	Dual	Non Specified - Dual Edge	2		10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)		Cantilever	125 °C	-40 °C
EDAC Inc. 892-020-540-207	Female	Wire Wrap	Gold	Through Hole	Dual	Non Specified - Dual Edge	2		10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Flush Mount M3 Threaded Insert Top Opening	Cantilever	125 °C	-40 °C
EDAC Inc. 892-020-524-103	Female	Solder	Gold	Through Hole	Single	Non Specified - Single Edge	1			20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Floating Bobbin Flush Mount	Cantilever	125 °C	-40 °C	20	20	20	0.116 in	2.95 mm
EDAC Inc. 892-020-544-201	Female	Wire Wrap	Gold	Through Hole	Dual	Non Specified - Dual Edge	2		10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)		Cantilever	125 °C	-40 °C
EDAC Inc. 892-020-523-208	Female	Solder	Gold	Through Hole	Dual	Non Specified - Dual Edge	2		10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	125 °C	-40 °C
EDAC Inc. 892-020-541-212	Female	Wire Wrap	Gold	Through Hole	Dual	Non Specified - Dual Edge	2		10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Flush Mount Side Opening Unthreaded	Cantilever	125 °C	-40 °C				0.128 "	3.25 mm
EDAC Inc. 892-020-524-201	Female	Solder	Gold	Through Hole	Dual	Non Specified - Dual Edge	2		10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)		Cantilever	125 °C	-40 °C
EDAC Inc. 892-020-542-104	Female	Wire Wrap	Gold	Through Hole	Single	Non Specified - Single Edge	1			20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	Cantilever	125 °C	-40 °C	20	20	20	0.156 in	3.96 mm
EDAC Inc. 892-020-544-204	Female	Wire Wrap	Gold	Through Hole	Dual	Non Specified - Dual Edge	2		10	20	Copper Alloy	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	Cantilever	125 °C	-40 °C				0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 73.07

Description

General part information

892-020 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
