X-LOK, MIDDLE SIZE, 20A, 03 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, 20A, 03 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	CC-03BFFA-QL8MPP

Cable Opening [Max] [custom]	0.394 in
Cable Opening [Max] [custom]	10 mm
Cable Opening [Min] [custom]	8 mm
Cable Opening [Min] [custom]	0.315 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Shielded
Voltage Rating	300 VAC

Part	Shielding	Contact Finish - Mating	Contact Material	Backshell Material, Plating	Features	Primary Material	Mounting Type	Connector Type	Color	Shell Size - Insert	Ingress Protection	Orientation	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Number of Positions	Voltage Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Amphenol LTW CC-03BFFA-SL7001	Unshielded	Gold	Copper Alloy	Thermoplastic	Backshell Coupling Nut	Plastic	Free Hanging (In-Line)	Female Sockets Plug	Black	C	IP67 - Dust Tight Waterproof	Keyed	Thermoplastic
Amphenol LTW CC-03BFFA-QL8LPP	Shielded	Gold	Copper Alloy		Backshell	Plastic	Free Hanging (In-Line)	Female Sockets Plug	Black	C	IP68 - Dust Tight Waterproof	Keyed	Nylon Polyamide (PA)	10 mm 12 mm	0.394 in 0.472 in	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	UL94 V-0	20 A	Push-Pull	3	300 VAC
Amphenol LTW CC-03BFFA-QL8MPP	Shielded	Gold	Copper Alloy		Backshell	Plastic	Free Hanging (In-Line)	Female Sockets Plug	Black	C	IP68 - Dust Tight Waterproof	Keyed	Nylon Polyamide (PA)			-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	UL94 V-0	20 A	Push-Pull	3	300 VAC	0.394 in	8 mm	10 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

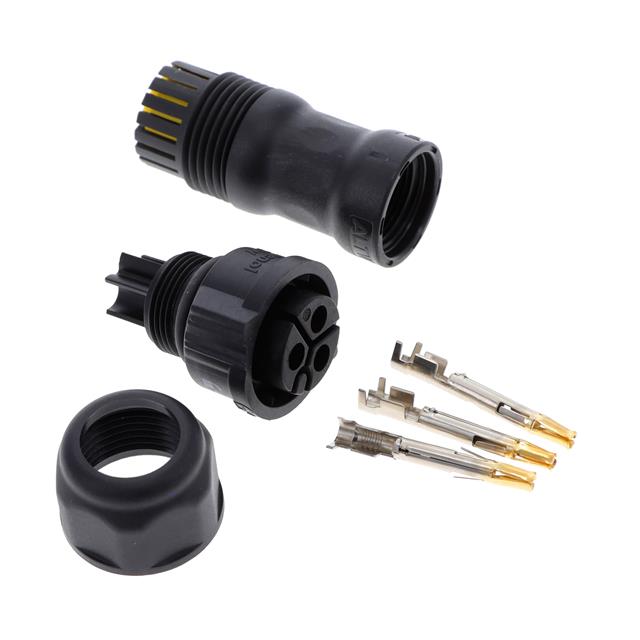

3 (Data) Position Circular Connector Plug, Female Sockets Solder Cup
