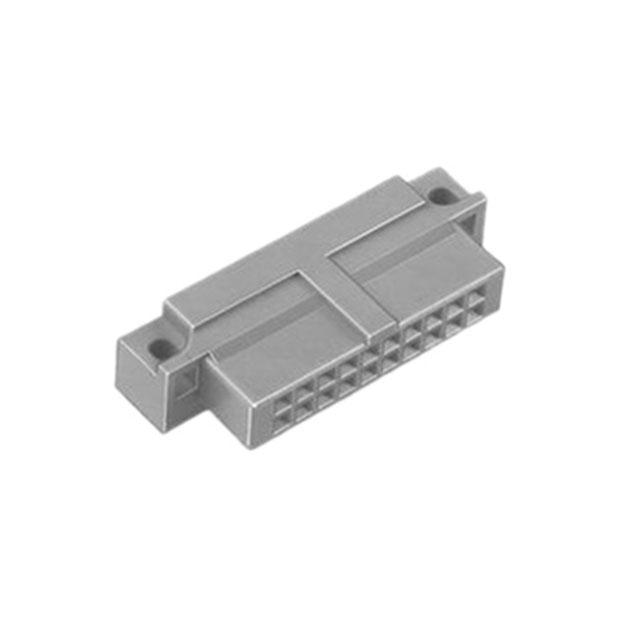

5120-B7A2PL

Active

3M (TC)

PCB RECEPTACLE, RIGHT ANGLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

PCB RECEPTACLE, RIGHT ANGLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	5120-B7A2PL

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key, Mounting Flange
Insulation Color	Gray
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

Part	Insulation Color	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Insulation Material	Voltage Rating	Contact Shape	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Length - Post	Contact Length - Post	Style	Contact Finish - Mating	Fastening Type	Number of Rows	Number of Positions	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions Loaded	Features	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating
3M (TC) 5120-B7A2PL	Gray	0.35 in	8.89 mm	Female Socket	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Square	Flash	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	0.102 in	2.6 mm	Board to Board Cable	Gold	Push-Pull	2	20	Through Hole Right Angle	30 Áin	0.76 Ám	Copper Alloy	All	Mounting Flange Polarizing Key	Receptacle	105 ░C	-55 °C	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
