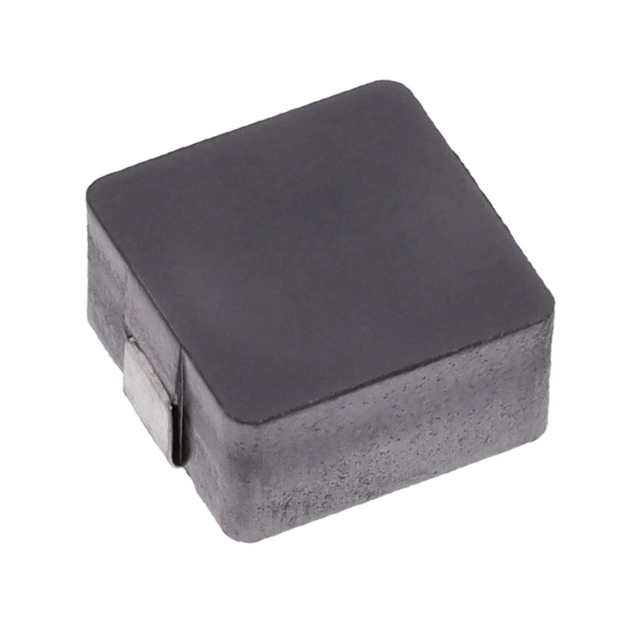

CMLS136E-R68MS

Active

Delta Electronics/Cyntec

FIXED IND 680NH 33A 1.7MOHM SMD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 680NH 33A 1.7MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 10UH 11A 18.5MOHM SMD

Part	Package / Case	Tolerance	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Mounting Type	Inductance Frequency - Test	Inductance	Material - Core
Delta Electronics/Cyntec CMLS136E-100MS	Nonstandard	20 %	18 A	-55 °C	125 °C	Shielded	18.5 mOhm	0.256 in	6.5 mm	11 A	Surface Mount	100 kHz	10 µH	Metal
Delta Electronics/Cyntec CMLS136E-1R0MS	Nonstandard	20 %	50 A	-55 °C	125 °C	Shielded	2.15 mOhm	0.256 in	6.5 mm	29 A	Surface Mount	100 kHz	1 µH	Metal
Delta Electronics/Cyntec CMLS136E-3R3MS	Nonstandard	20 %	40 A	-55 °C	125 °C	Shielded	4.4 mOhm	0.256 in	6.5 mm	22 A	Surface Mount	100 kHz	3.3 µH	Metal
Delta Electronics/Cyntec CMLS136E-1R8MS	Nonstandard	20 %	47 A	-55 °C	125 °C	Shielded	3.1 mOhm	0.256 in	6.5 mm	25 A	Surface Mount	100 kHz	1.8 µH	Metal
Delta Electronics/Cyntec CMLS136E-1R5MS	Nonstandard	20 %	48 A	-55 °C	125 °C	Shielded	2.6 mOhm	0.256 in	6.5 mm	28 A	Surface Mount	100 kHz	1.5 µH	Metal
Delta Electronics/Cyntec CMLS136E-2R2MS	Nonstandard	20 %	42 A	-55 °C	125 °C	Shielded	4.2 mOhm	0.256 in	6.5 mm	22.5 A	Surface Mount	100 kHz	2.2 µH	Metal
Delta Electronics/Cyntec CMLS136E-R68MS	Nonstandard	20 %	70 A	-55 °C	125 °C	Shielded	1.7 mOhm	0.256 in	6.5 mm	33 A	Surface Mount	100 kHz	0.68 µH	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

680 nH Shielded Inductor 33 A 1.7mOhm Max Nonstandard
