305-082-521-558
ActiveEDAC Inc.

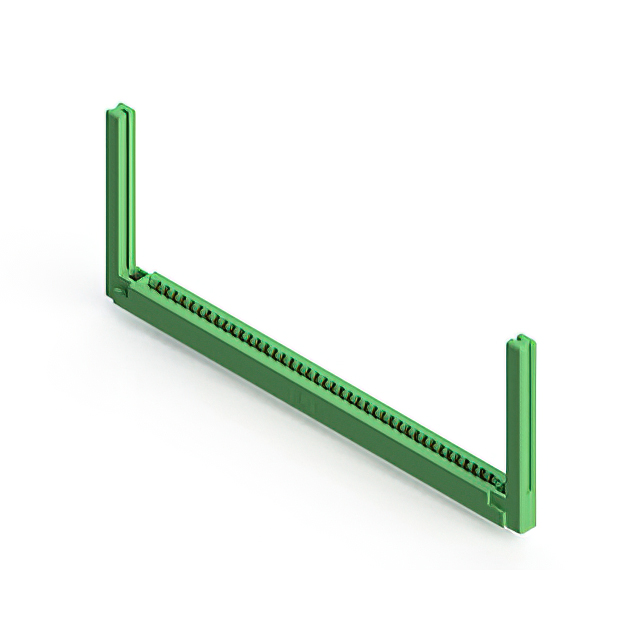

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-082-521-558
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-082-521-558 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-082 Series
| Part | Mounting Type | Termination | Termination Rows | Contact Type | Pitch [x] | Pitch [x] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Contact Material | Color | Number of Positions | Card Type | Read Out | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Gender | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Board Edge Straddle Mount | Solder | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | |||
EDAC Inc. | Board Edge Straddle Mount | Solder | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | |||
EDAC Inc. | Board Edge Straddle Mount | Solder | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Female | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | Solder Eyelet(s) | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | ||||
EDAC Inc. | Panel Mount Through Hole | Solder | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | |||
EDAC Inc. | Solder Eyelet(s) | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | ||||
EDAC Inc. | Solder Eyelet(s) | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | ||||
EDAC Inc. | Panel Mount Through Hole | Solder | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | |||
EDAC Inc. | Board Edge Straddle Mount | Solder | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Female | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | Solder Eyelet(s) | 2 | Semi Bellows | 0.156 in | 3.96 mm | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Green | 82 | Non Specified - Dual Edge | Dual | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-082 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Documents
Technical documentation and resources
