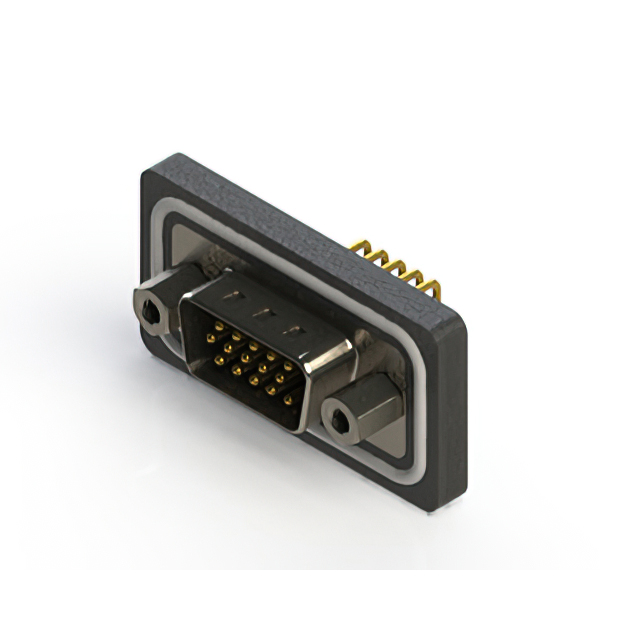

Specification	633-W15-362-012

Color	Black
Connector Layout	High Density, DE, E
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

633-W15 Series

Part	Contact Finish	Shell Size	Connector Layout	Contact Finish Thickness	Current Rating (Per Contact)	Termination	Flange Feature	Material Flammability Rating	Connector Type	Mounting Type	Connector Style	Features	Number of Rows	Number of Positions	Contact Type	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Finish	Color	Contact Material	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)
EDAC Inc. 633-W15-362-012	Gold	1	DE E High Density	15 µin	3 A	Solder	Female Screwlock (4-40) Mating Side	UL94 V-0	Male Pins Plug	Right Angle Through Hole	D-Sub High Density	Grounding Indents Shielded	3	15	Signal	Dust Tight Waterproof	IP67	Steel	Nickel Plated	Black	Copper Alloy	Polybutylene Terephthalate (PBT)	85 °C	-25 °C
