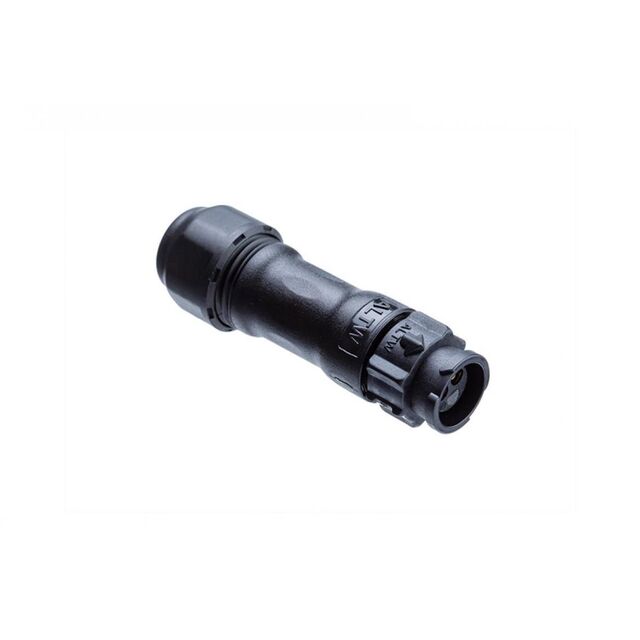

BB-03BMFA-QL8MPP

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 10A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE, 6.0

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 10A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE, 6.0

Technical Specifications

Parameters and characteristics for this part

Specification	BB-03BMFA-QL8MPP

Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

Part	Ingress Protection	Connector Type	Orientation	Note	Housing Color	Contact Type	Mounting Type	Shell Size - Insert	Fastening Type	Shielding	Type	Insert Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Features	Number of Positions	Color	Termination	Shell Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating	Contact Material
Amphenol LTW BB-03BMFA-QL8ANP	IP68 - Dust Tight Waterproof	Plug Housing	Keyed	Contacts Not Included	Black	Crimp	Free Hanging (In-Line)	B	Push-Pull	Unshielded	For Female Sockets	Thermoplastic	Plastic	-40 °C	105 ░C	Circular	Backshell
Amphenol LTW BB-03BMFA-QL8LNP	IP68 - Dust Tight Waterproof	Plug Housing	Keyed	Contacts Not Included	Black	Crimp	Free Hanging (In-Line)	B	Push-Pull	Unshielded	For Female Sockets	Thermoplastic	Plastic	-40 °C	105 ░C	Circular	Backshell
Amphenol LTW BB-03BMFA-QL8MPP	IP68 - Dust Tight Waterproof	Female Sockets Plug	Keyed				Free Hanging (In-Line)	B	Push-Pull	Unshielded		Polyamide (PA) Nylon Glass Filled	Plastic	-40 °C	105 ░C		Backshell	3	Black	Crimp	Glass Filled Nylon Polyamide (PA)	8 mm	6 mm	0.315 in	0.236 in	UL94 V-0	10 A	Gold	300 VAC	Copper Alloy
Amphenol LTW BB-03BMFA-QL8MNP	IP68 - Dust Tight Waterproof	Plug Housing	Keyed	Contacts Not Included	Black	Crimp	Free Hanging (In-Line)	B	Push-Pull	Unshielded	For Female Sockets	Thermoplastic	Plastic	-40 °C	105 ░C	Circular	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Plug, Female Sockets Crimp
