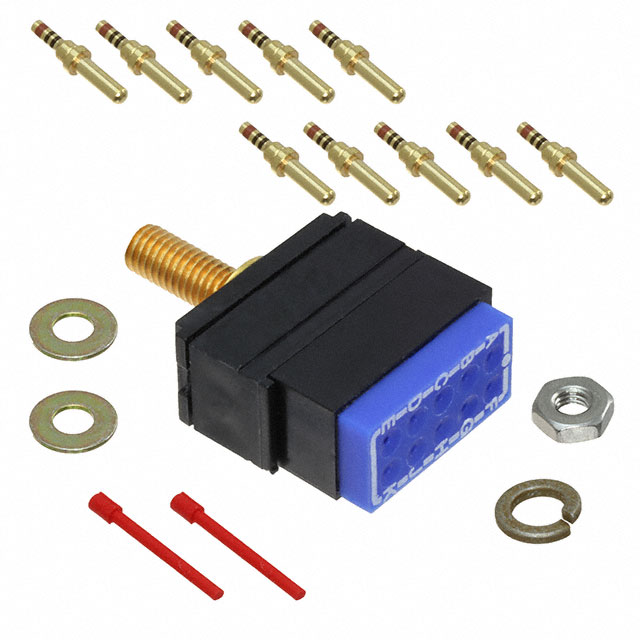

TJG122701

Active

AMPHENOL PCD

CONN GRND BLOCK SZ16/22

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN GRND BLOCK SZ16/22

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN GRND BLOCK SZ22 0.850" L

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Module Capacity	Contact Size
AMPHENOL PCD TJG122711	9.91 mm	0.85 "	0.847 "	0.39 "	21.51 mm	21.59 mm	Ground Block	10	22
AMPHENOL PCD TJG122701							Ground Block	10	16, 22

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Ground Block Contact Size 16, 22

Technical documentation and resources

No documents available
