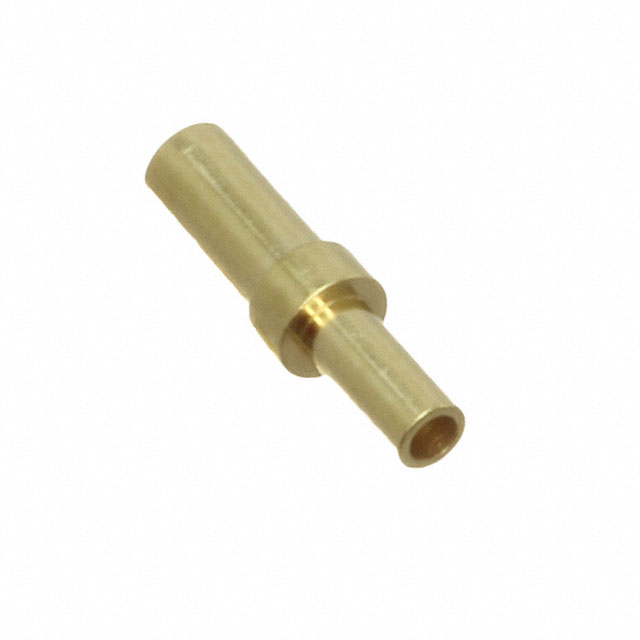

0326-3-19-15-06-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .022-.032 SWAGE
Deep-Dive with AI
Search across all available documentation for this part.
0326-3-19-15-06-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .022-.032 SWAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0326-3-19-15-06-27-10-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Length - Overall [x] | 8.26 mm |
| Length - Overall [x] | 0.325 in |
| Mounting Hole Diameter [diameter] | 0.06 in |
| Mounting Hole Diameter [diameter] | 1.52 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.051 in |
| Pin Hole Diameter [diameter] | 1.3 mm |
| Socket Depth | 0.17 in |
| Socket Depth | 4.32 mm |
| Tail Type | No Tail |
| Termination | Swage |
0326-3 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Socket Depth | Socket Depth | Tail Type | Board Thickness | Board Thickness | Contact Finish | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | 2.39 mm | 0.094 in | 0.17 in | 4.32 mm | No Tail | 0.094 in | 2.39 mm | Gold | 0.051 in | 1.3 mm | 8.26 mm | 0.325 in | Beryllium Copper | 0.76 Ám | 30 Áin | 0.06 in | 1.52 mm | Swage |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | 2.39 mm | 0.094 in | 0.17 in | 4.32 mm | No Tail | Gold | 0.051 in | 1.3 mm | 8.26 mm | 0.325 in | Beryllium Copper | 0.25 Ám | 10 Áin | 0.06 in | 1.52 mm | Swage | ||
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | 2.39 mm | 0.094 in | 0.17 in | 4.32 mm | No Tail | Gold | 0.051 in | 1.3 mm | 8.26 mm | 0.325 in | Beryllium Copper | 0.76 Ám | 30 Áin | 0.06 in | 1.52 mm | Swage | ||
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | 2.39 mm | 0.094 in | 0.17 in | 4.32 mm | No Tail | Gold | 0.051 in | 1.3 mm | 8.26 mm | 0.325 in | Beryllium Copper | 0.25 Ám | 10 Áin | 0.06 in | 1.52 mm | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.33 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.09 | |||
| 100 | $ 1.04 | |||
| 250 | $ 0.94 | |||
| 500 | $ 0.87 | |||
Description
General part information
0326-3 Series
Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Swage
