516-020-000-402

Active

EDAC Inc.

CONNECTOR HOUSING, GREY, LOCKNUT & POLARIZING HARDWARE, 516 SERIES, RECEPTACLE, 20 POSITIONS

Find alt

Alpha

516-020-000-402

Active

EDAC Inc.

CONNECTOR HOUSING, GREY, LOCKNUT & POLARIZING HARDWARE, 516 SERIES, RECEPTACLE, 20 POSITIONS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

516-020 Series

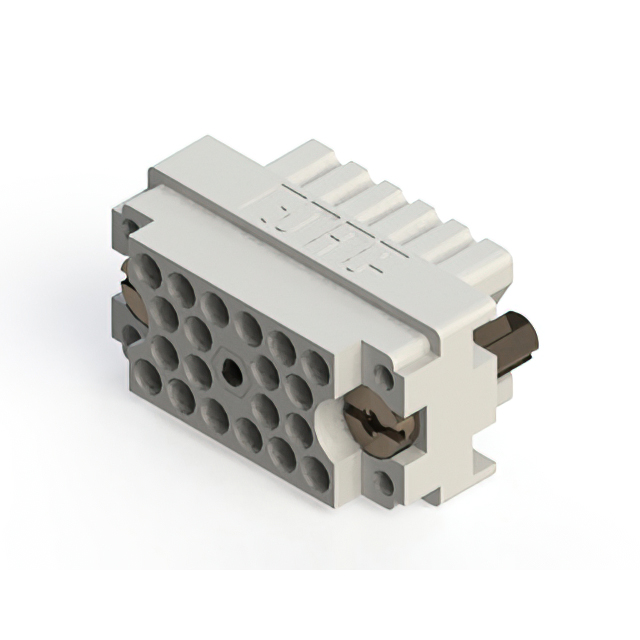

The 516-020-000-402 is a 20-way Receptacle with grey polycarbonate insulator, locknut, polarizing hardware. This 516 series connector with phosphor bronze alloy contacts, gold over nickel for entire contact plating.

Technical Specifications

Parameters and characteristics for this part

Specification	516-020-000-402

Color	Gray
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Mating Guide, Jackscrew Socket
Note	Contacts Not Included
Number of Positions	20
Number of Rows	4
Pitch	0.15 in

516-020 Series

...

Part	Note	Color	Connector Style	Connector Type	Number of Rows	Connector Usage	Number of Positions	Mounting Type	Features	Pitch
EDAC Inc. 516-020-520-211	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	4	Receptacle	20	Free Hanging (In-Line)	Backshell Jackscrew Mating Guide	0.15 in
EDAC Inc. 516-020-500-266	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	4	Receptacle	20	Free Hanging (In-Line)	Backshell Jackscrew Socket	0.15 in
EDAC Inc. 516-020-500-365	Contacts Not Included	Gray	Rack and Panel	Housing for Non-Gendered Contacts	4	Plug	20	Free Hanging (In-Line)	Backshell Jackscrew	0.15 in
EDAC Inc. 516-020-542-301	Contacts Not Included	Gray	Rack and Panel	Housing for Non-Gendered Contacts	4	Plug	20		Guide Pin Jackscrew	0.15 in
EDAC Inc. 516-020-520-615	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	4	Receptacle	20	Free Hanging (In-Line)	Backshell Jackscrew	0.15 in
EDAC Inc. 516-020-542-106	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	4	Plug	20		Jackscrew Socket	0.15 in
EDAC Inc. 516-020-520-125	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	4	Plug	20	Free Hanging (In-Line)	Backshell Jackscrew	0.15 in
EDAC Inc. 516-020-520-425	Contacts Not Included	Gray	Rack and Panel	Housing for Non-Gendered Contacts	4	Receptacle	20	Free Hanging (In-Line)	Backshell Jackscrew	0.15 in
EDAC Inc. 516-020-520-162	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	4	Plug	20	Free Hanging (In-Line)	Backshell Guide Pin Jackscrew Socket	0.15 in
EDAC Inc. 516-020-541-601	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	4	Receptacle	20		Jackscrew Mating Guide	0.15 in
