STCF03PNR
ObsoleteSTMicroelectronics
IC LED DRV RGLTR I2C 800MA 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STCF03PNR
ObsoleteSTMicroelectronics
IC LED DRV RGLTR I2C 800MA 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STCF03PNR |
|---|---|
| Applications | Camera Flash |
| Current - Output / Channel | 800 mA |
| Dimming | I2C |
| Frequency | 1.8 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

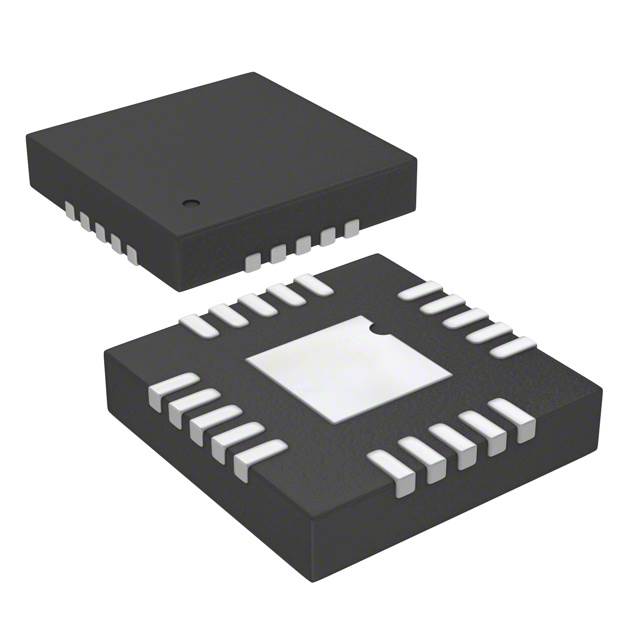

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output [Max] | 5.3 V |
| Voltage - Output [Min] | 2.5 V |
| Voltage - Supply (Max) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STCF03 Series
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) I2C Dimming 800mA (Flash) 20-QFN (4x4)
