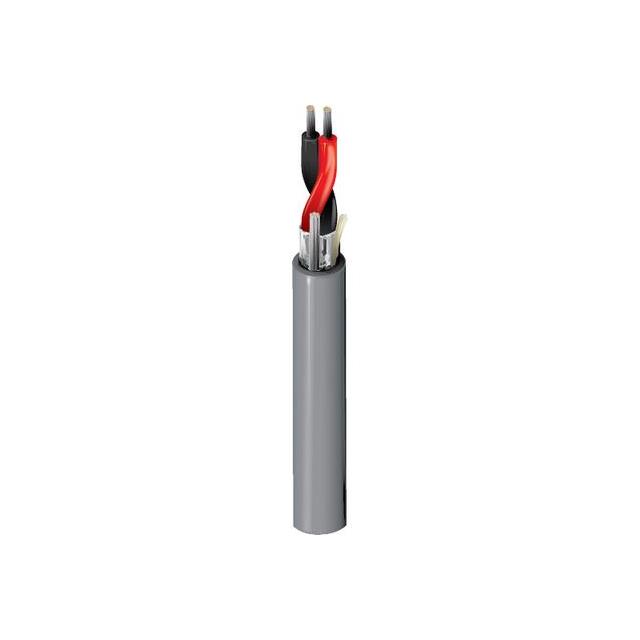

5200FH 008U1000

Obsolete

Belden Inc.

MULTI-CONDUCTOR CABLES 2 #16 PO FS FRPVC

Search across all available documentation for this part.

Obsolete

Belden Inc.

MULTI-CONDUCTOR CABLES 2 #16 PO FS FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	5200FH 008U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Material	Shield Coverage	Shield Material	Usage	Conductor Insulation	Length	Length	Cable Type	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Shield Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color
Belden Inc. 5200FH 009U1000	Copper Tinned	100 %	Aluminum	Security Sound	Polypropylene (PP)	1000 ft	304.8 m	Multi-Conductor	UL Style CMR	4.67 mm	0.184 in	Drain Wire Rip Cord	0.432 mm	0.017 in	16 AWG	Poly-Vinyl Chloride (PVC) Riser	2	Foil	300 V	19 Strands	29 AWG
Belden Inc. 5200FH 0081000	Copper Tinned	100 %	Aluminum	Security Sound	Polypropylene (PP)	1000 ft	304.8 m	Multi-Conductor	UL Style CMR	4.67 mm	0.184 in	Drain Wire Rip Cord	0.432 mm	0.017 in	16 AWG	Poly-Vinyl Chloride (PVC) Riser	2	Foil	300 V	19 Strands	29 AWG	Gray
Belden Inc. 5200FH 008U1000	Copper Tinned	100 %	Aluminum	Security Sound	Polypropylene (PP)	1000 ft	304.8 m	Multi-Conductor	UL Style CMR	4.67 mm	0.184 in	Drain Wire Rip Cord	0.432 mm	0.017 in	16 AWG	Poly-Vinyl Chloride (PVC) Riser	2	Foil	300 V	19 Strands	29 AWG	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Multi-Conductor Cable Gray 16 AWG Foil 1000.0' (304.8m)
