120526-1
ActiveTE Connectivity AMP Connectors

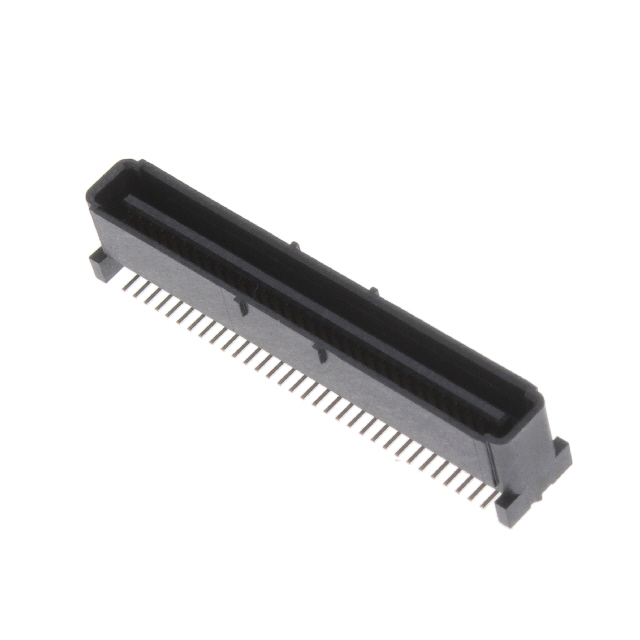

CONN PLUG 64POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
120526-1
ActiveTE Connectivity AMP Connectors
CONN PLUG 64POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 120526-1 |
|---|---|
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board [z] | 0.289 in |
| Height Above Board [z] | 7.35 mm |
| Mated Stacking Heights | 11 mm, 9 mm, 14 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.90 | |
| 10 | $ 6.89 | |||
| 25 | $ 6.71 | |||
| 50 | $ 6.53 | |||
| 100 | $ 6.13 | |||
| Digi-Reel® | 1 | $ 7.90 | ||
| 10 | $ 6.89 | |||
| 25 | $ 6.71 | |||
| 50 | $ 6.53 | |||
| 100 | $ 6.13 | |||
| Tape & Reel (TR) | 450 | $ 4.71 | ||
120526 Series
CONN PLUG 64POS SMD GOLD
| Part | Mated Stacking Heights | Number of Positions | Number of Rows | Contact Finish | Height Above Board [z] | Height Above Board [z] | Pitch [x] | Pitch [x] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 120526-1 | 9 mm, 11 mm, 14 mm | 64 | 2 | Gold | 0.289 in | 7.35 mm | 0.039 in | 1 mm | Surface Mount | Board Guide |
Description
General part information
120526 Series
64 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Documents
Technical documentation and resources
