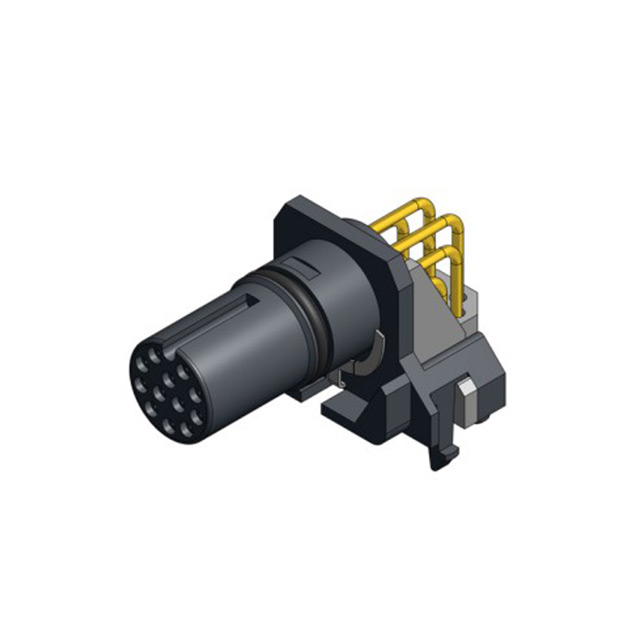

43-02799

Active

Amphenol CONEC

CONN FMALE INSERT 12P GOLD SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN FMALE INSERT 12P GOLD SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	43-02799

Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	1.5 A
Features	Requires Shell, Insert Only, Board Lock, Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Orientation	A
Shell Size - Insert	M12-12
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Termination	Voltage Rating	Connector Type	Number of Positions	Contact Finish - Mating	Ingress Protection	Contact Material	Mounting Type	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shielding	Insert Material	Current Rating (Amps)	Material Flammability Rating
Amphenol CONEC 43-02797	Solder	30 VDC	Female Sockets Insert	8	Gold	IP67 - Dust Tight Waterproof	Copper Zinc	Through Hole Right Angle	A	Board Guide Board Lock Insert Only Requires Shell	-30 ░C	80 C	M12-8	Shielded	Nylon Polyamide (PA)	2 A	UL94 V-0
Amphenol CONEC 43-02796	Solder	30 VDC	Female Sockets Insert	8	Gold	IP67 - Dust Tight Waterproof	Copper Zinc	Through Hole Right Angle	A	Board Guide Board Lock Insert Only Requires Shell	-30 ░C	80 C	M12-8	Unshielded	Nylon Polyamide (PA)	2 A	UL94 V-0
Amphenol CONEC 43-02798	Solder	30 VDC	Female Sockets Insert	12	Gold	IP67 - Dust Tight Waterproof	Copper Zinc	Through Hole Right Angle	A	Board Guide Board Lock Insert Only Requires Shell	-30 ░C	80 C	M12-12	Unshielded	Nylon Polyamide (PA)	1.5 A	UL94 V-0
Amphenol CONEC 43-02799	Solder	30 VDC	Female Sockets Insert	12	Gold	IP67 - Dust Tight Waterproof	Copper Zinc	Through Hole Right Angle	A	Board Guide Board Lock Insert Only Requires Shell	-30 ░C	80 C	M12-12	Shielded	Nylon Polyamide (PA)	1.5 A	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 27.98

General part information

12 Position Circular Connector Insert, Female Sockets Solder
