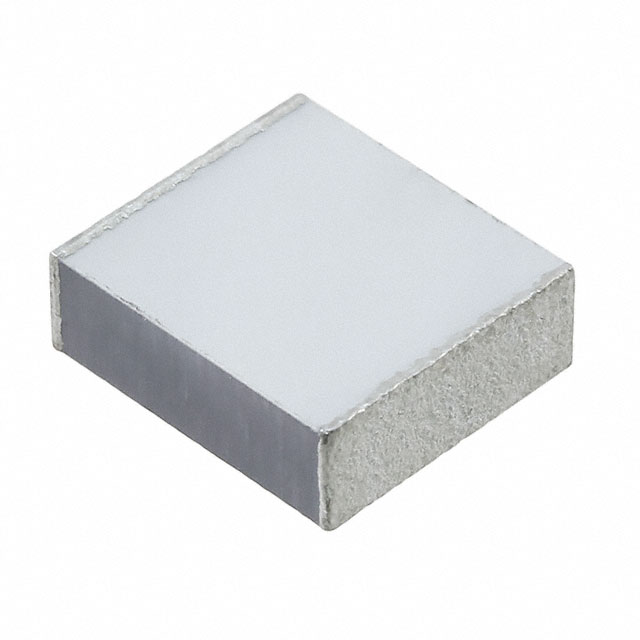

LDEIH4100KA5N00

Active

KEMET

CAP FILM 1UF 10% 250VDC 6054

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 10% 250VDC 6054

Technical Specifications

Parameters and characteristics for this part

Specification	LDEIH4100KA5N00

Applications	Automotive
Capacitance	1 µF
Dielectric Material	Polyethylene Naphthalate (PEN), Metallized - Stacked, Polyester
Features	High Temperature
Height - Seated (Max) [Max] [z]	0.181 "
Height - Seated (Max) [Max] [z]	4.6 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	153137 Metric
Package / Case	6054
Ratings	AEC-Q200
Size / Dimension [x]	15.5 mm
Size / Dimension [x]	0.61 in
Size / Dimension [y]	13.7 mm
Size / Dimension [y]	0.539 in
Termination	Solder Pads
Tolerance	10 %
Voltage Rating - AC	120 V
Voltage Rating - DC	250 V

Part	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Applications	Dielectric Material	Features	Tolerance	Ratings	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Voltage Rating - DC
KEMET LDEIH4100KA5N00	Solder Pads	0.181 "	4.6 mm	15.5 mm	13.7 mm	0.539 in	0.61 in	1 µF	Automotive	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	High Temperature	10 %	AEC-Q200	153137 Metric	6054	-55 °C	125 °C	Surface Mount	120 V	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF Film Capacitor 120V 250V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 6054 (153137 Metric)
