2908047

Active

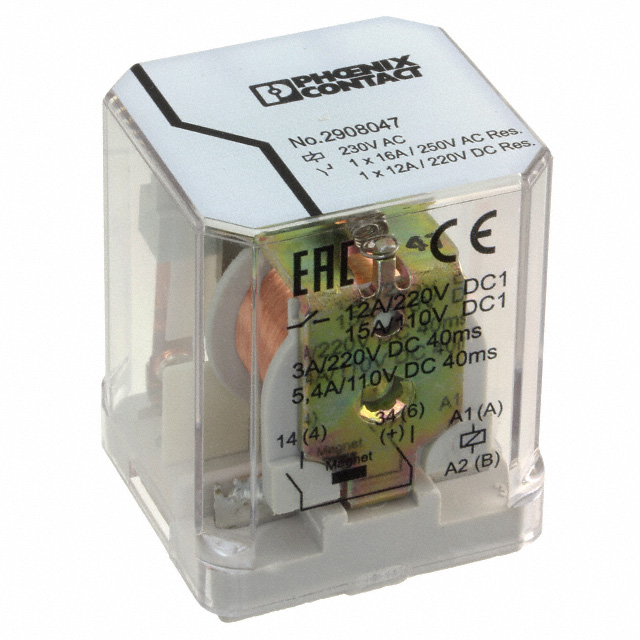

Phoenix Contact

RELAY GEN PURPOSE SPST 16A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 16A 230V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 230VAC Coil Socketable

Technical documentation and resources

Parameters and characteristics commom to parts in this series

POWER RELAY 24VDC 16A SPST-NO(38.6X36.1X45.5)MM SOCKET

Part	Contact Rating (Current)	Switching Voltage	Release Time	Contact Form	Coil Current	Coil Voltage	Contact Material	Mounting Type	Coil Type	Relay Type	Approval Agency	Coil Resistance	Operate Time	Features	Load - Max Switching	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 2908040	16 A	350 VDC, 440 VAC	15 ms	SPST-NO (1 Form A)	70 mA	24 VDC	Silver Nickel (AgNi)	Socketable	Non Latching	General Purpose	EAC, EX	342.9 Ohms	20 ms	Magnetic Blowout	5600 W, 7040 VA	Plug In	-40 °C	70 °C
Phoenix Contact 2908047	16 A	350 VDC, 440 VAC	18 ms	SPST-NO (1 Form A)	12 mA	230 VAC	Silver Nickel (AgNi)	Socketable	Non Latching	General Purpose	EAC, EX	19.17 kOhms	25 ms	Magnetic Blowout	5600 W, 7040 VA	Plug In	-40 °C	70 °C
Phoenix Contact 2908044	16 A	350 VDC, 440 VAC	15 ms	SPST-NO (1 Form A)	15 mA	110 VDC	Silver Nickel (AgNi)	Socketable	Non Latching	General Purpose	EAC, EX	7.3 kOhms	20 ms	Magnetic Blowout	5600 W, 7040 VA	Plug In	-40 °C	70 °C
