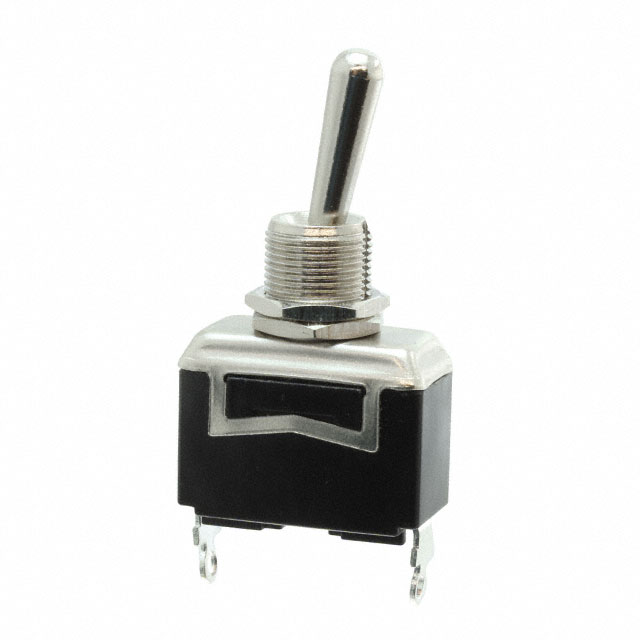

ST121D02

Active

E-Switch

SWITCH TOGGLE SPST 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ST121D02

Actuator Length [x]	19.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Switch Function	Illumination	Voltage Rating - AC	Electrical Life	Actuator Length [x]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Circuit	Bushing Thread	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]
E-Switch ST121D02	On-Off	Non-Illuminated	125 V	6000 Cycles	19.5 mm	Solder Lug	0 °C	85 °C	Brass Nickel Plated	SPST	15/32-32	20 A	Standard Round	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
