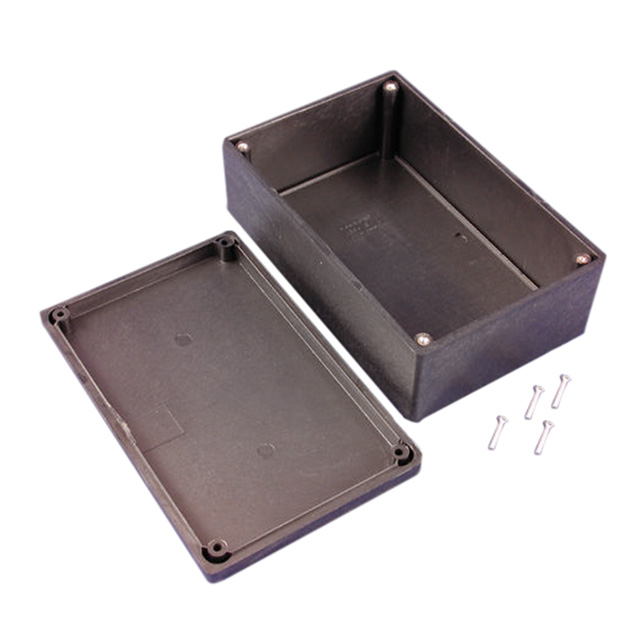

Specification	1594RFIEBK

Area (L x W)	27.7 in²
Color	Black
Container Type	Box
Design	Cover Included
Features	Flame Retardant, EMI Shielded
Height	2.555 in
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension Length	6.575 in
Size / Dimension Width	4.213 in
Thickness	0.13 in
Weight	0.6 lb

1594 Series

Part	Area (L x W)	Weight	Material Flammability Rating	Container Type	Height	Thickness	Features	Design	Color	Ratings	Size / Dimension Length	Size / Dimension Width	Material	Accessory Type	Accessory Length	For Use With/Related Products
Hammond Manufacturing 1594RFIABK	4.86 in²	0.5 lbs	UL94 V-0	Box	1.578 in	0.13 in	EMI Shielded Flame Retardant	Cover Included	Black	IP54	2.205 in	2.205 in	ABS
Hammond Manufacturing 1594BWBK	7.03 in²		UL94 V-0	Box	1.578 in	0.13 in	Flame Retardant Watertight	Cover Included	Black	IP66	3.189 in	2.205 in	ABS
Hammond Manufacturing 1594DGY	13.5 in²	0.306 lb	UL94 V-0	Box	2.169 in	0.13 in	Flame Retardant	Cover Included	Gray	IP54	5.177 in	2.61 in	ABS
Hammond Manufacturing 1594CWBK	10.9 in²		UL94 V-0	Box	1.787 in	0.13 in	Flame Retardant Watertight	Cover Included	Black	IP66	4.193 in	2.598 in	ABS
Hammond Manufacturing 1594BBK	7.03 in²	0.169 lb	UL94 V-0	Box	1.578 in	0.13 in	Flame Retardant	Cover Included	Black	IP54	3.189 in	2.205 in	ABS
Hammond Manufacturing 1594RFIBBK	7.03 in²	0.5 lbs	UL94 V-0	Box	1.578 in	0.13 in	EMI Shielded Flame Retardant	Cover Included	Black	IP54	3.189 in	2.205 in	ABS
Hammond Manufacturing 1594AGY	4.86 in²	0.125 lb	UL94 V-0	Box	1.578 in	0.13 in	Flame Retardant	Cover Included	Gray	IP54	2.205 in	2.205 in	ABS
Hammond Manufacturing 1594DSBK	13.5 in²	0.25 lbs		Box	2.169 in	0.13 in		Cover Included	Black	IP54	5.177 in	2.61 in	ABS
Hammond Manufacturing 1594ASGY	4.86 in²	0.109 lb		Box	1.578 in	0.13 in		Cover Included	Gray	IP54	2.205 in	2.205 in	ABS
Hammond Manufacturing 1594AZ25														Polystyrene Screw Mount	2.2 in	1594ASGY
