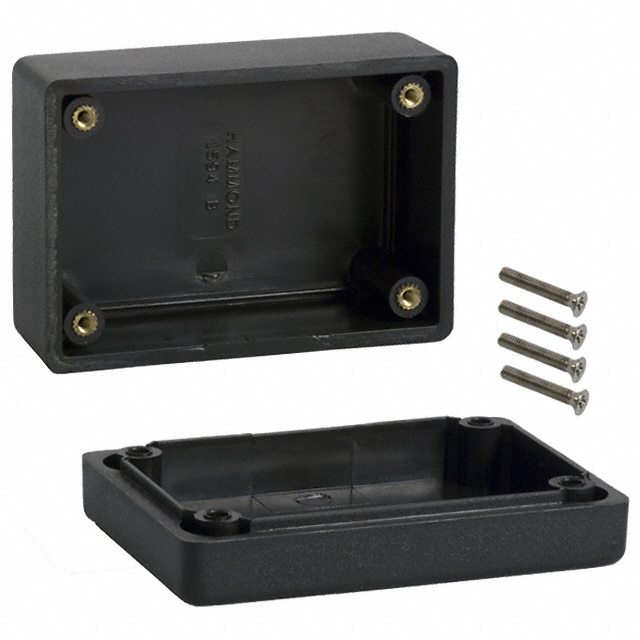

1594BBK

Active

Hammond Manufacturing

BOX PLASTIC BLK 3.19"L X 2.21"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1594A Drawing

1594BBK

Active

Hammond Manufacturing

BOX PLASTIC BLK 3.19"L X 2.21"W

Deep-Dive with AI

Documents1594A Drawing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1594BBK

Area (L x W)	7.03 in²
Area (L x W)	45.4 cm²
Color	Black
Container Type	Box
Design	Cover Included
Features	Flame Retardant
Height [z]	1.578 in
Height [z]	40.08 mm
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension [x]	3.189 in
Size / Dimension [x]	81 mm
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Thickness	0.13 in
Thickness	3.3 mm
Weight	0.169 lb
Weight	76.66 g

1594 Series

Part	Material Flammability Rating	Features	Thickness	Thickness	Color	Ratings	Weight	Weight	Material	Design	Container Type	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Size / Dimension	Accessory Type	Accessory Type	Accessory Type	For Use With/Related Products	Drive Type	Screw Head Type	Thread Size	Length - Overall	Length - Overall	Type
Hammond Manufacturing 1594DGY	UL94 V-0	Flame Retardant	0.13 in	3.3 mm	Gray	IP54	138.8 g	0.306 lb	ABS	Cover Included	Box	87 cm˛	13.5 in˛	131.5 mm	66.29 mm	5.177 "	2.61 "
Hammond Manufacturing 1594CWBK	UL94 V-0	Flame Retardant Watertight	0.13 in	3.3 mm	Black	IP66			ABS	Cover Included	Box	70 cm²	10.9 in²	4.193 in 106.5 mm	2.598 in 65.99 mm			45.39 mm	1.787 in
Hammond Manufacturing 1594BBK	UL94 V-0	Flame Retardant	0.13 in	3.3 mm	Black	IP54	76.66 g	0.169 lb	ABS	Cover Included	Box	45.4 cm²	7.03 in²	81 mm	56 mm	3.189 in	2.205 in	40.08 mm	1.578 in
Hammond Manufacturing 1594AGY	UL94 V-0	Flame Retardant	0.13 in	3.3 mm	Gray	IP54	56.7 g	0.125 lb	ABS	Cover Included	Box	31.4 cm˛	4.86 in˛					40.08 mm	1.578 in	2.205 in 56 mm
Hammond Manufacturing 1594DSBK			0.13 in	3.3 mm	Black	IP54	113.4 g	0.25 lbs	ABS	Cover Included	Box	87 cm˛	13.5 in˛	131.5 mm	66.29 mm	5.177 "	2.61 "
Hammond Manufacturing 1594ASGY			0.13 in	3.3 mm	Gray	IP54	49.44 g	0.109 lb	ABS	Cover Included	Box	31.4 cm˛	4.86 in˛					40.08 mm	1.578 in	2.205 in 56 mm
Hammond Manufacturing 1594AZ25																					Polystyrene Screw Mount	2.2 in	55.88 mm	1594ASGY
Hammond Manufacturing 1594CSBK			0.13 in	3.3 mm	Black	IP54	86.18 g	0.19 lb	ABS	Cover Included	Box	70 cm²	10.9 in²	4.193 in 106.5 mm	2.598 in 65.99 mm			45.39 mm	1.787 in
Hammond Manufacturing 1594TS100		Self Tapping																							Phillips	Flat Head	#4	25.4 mm	1 "	Sheet Metal Screw
Hammond Manufacturing 1594EGASKET																					Gasket Seal			1594E Series

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.69
		5	$ 10.10
		10	$ 9.50
		25	$ 8.91
		50	$ 8.31
		100	$ 8.17
		250	$ 8.02
		500	$ 7.90
		1000	$ 7.72

Description

General part information

1594 Series

Box ABS Black Cover Included 3.189" L x 2.205" W (81.00mm x 56.00mm) X 1.578" (40.08mm)

Documents

Technical documentation and resources

1594A Drawing

Datasheet
