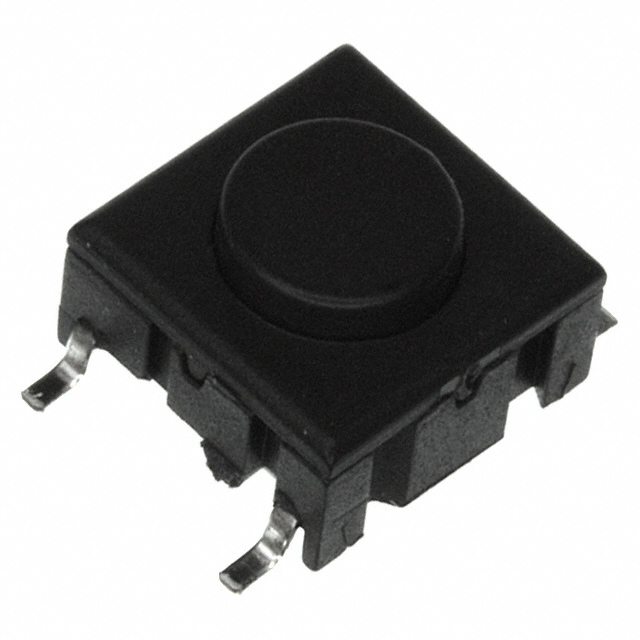

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	3CSH9R

Actuator Height off PCB, Vertical [z]	6.4 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Surface Mount
Operating Force	300 gf
Operating Temperature [Max]	160 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Function	Outline [x]	Outline [y]	Mounting Type	Switch Travel	Actuator Material	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Ingress Protection	Actuator Type	Actuator Orientation	Operating Force	Mechanical Life	Circuit	Illumination	Features
MEC Switches 3CSH9R	Off-Mom	10.1 mm	10.1 mm	Surface Mount	1 mm	Polyphenylene Sulfide (PPS)	0.05 A, 24 VDC	6.4 mm	-40 °C	160 °C	Gull Wing	IP67 - Dust Tight, Waterproof	Standard	Top Actuated	300 gf	10000000 Cycles	SPST-NO	Non-Illuminated	Sealed - Flux Protection
