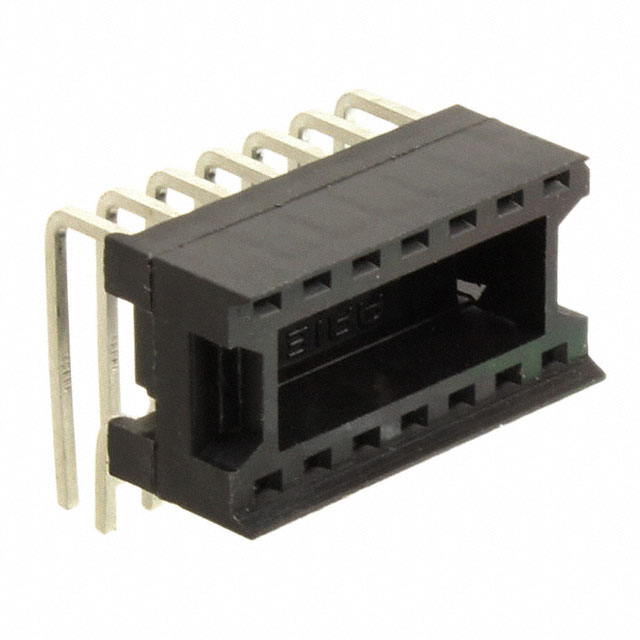

14-820-90T

Active

Aries Electronics

CONN IC DIP SOCKET 14POS TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

14-820-90T

Active

Aries Electronics

CONN IC DIP SOCKET 14POS TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14-820-90T

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1.5 A
Features	Closed Frame
Housing Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	14
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.145 "
Termination Post Length	3.68 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

14-820 Series

Part	Number of Positions or Pins (Grid)	Housing Material	Contact Material - Post	Termination	Pitch - Mating	Pitch - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Type	Contact Material - Mating	Material Flammability Rating	Current Rating (Amps)	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Post [custom]
Aries Electronics 14-820-90TWR	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	Solder	0.1 in	2.54 mm	Closed Frame	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Phosphor Bronze	UL94 V-0	1.5 A	2.54 mm	0.1 in	0.145 "	3.68 mm	Tin	5.08 µm	200 µin
Aries Electronics 14-820-90T	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	Solder	0.1 in	2.54 mm	Closed Frame	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Phosphor Bronze	UL94 V-0	1.5 A	2.54 mm	0.1 in	0.145 "	3.68 mm	Tin	5.08 µm	200 µin
Aries Electronics 14-820-90WR	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	Solder	0.1 in	2.54 mm	Closed Frame	10 çin	0.25 çm	0.3 "	7.62 mm	DIP	Phosphor Bronze	UL94 V-0	1.5 A	2.54 mm	0.1 in	0.145 "	3.68 mm	Gold	0.25 çm	10 çin	Gold
Aries Electronics 14-820-90C	14	Glass Filled Nylon 4/6 Polyamide (PA46)		Solder	0.1 in	2.54 mm	Closed Frame	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Beryllium Copper	UL94 V-0	3 A	2.54 mm	0.1 in	0.14 in	3.56 mm	Tin	0.76 Ám	30 Áin	Gold	105 ░C	-55 °C	Brass
Aries Electronics 14-820-90	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	Solder	0.1 in	2.54 mm	Closed Frame	10 çin	0.25 çm	0.3 "	7.62 mm	DIP	Phosphor Bronze	UL94 V-0	1.5 A	2.54 mm	0.1 in	0.145 "	3.68 mm	Gold	0.25 çm	10 çin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.94
		10	$ 8.05
		100	$ 7.19
		1000	$ 5.33

Description

General part information

14-820 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole, Right Angle, Horizontal
