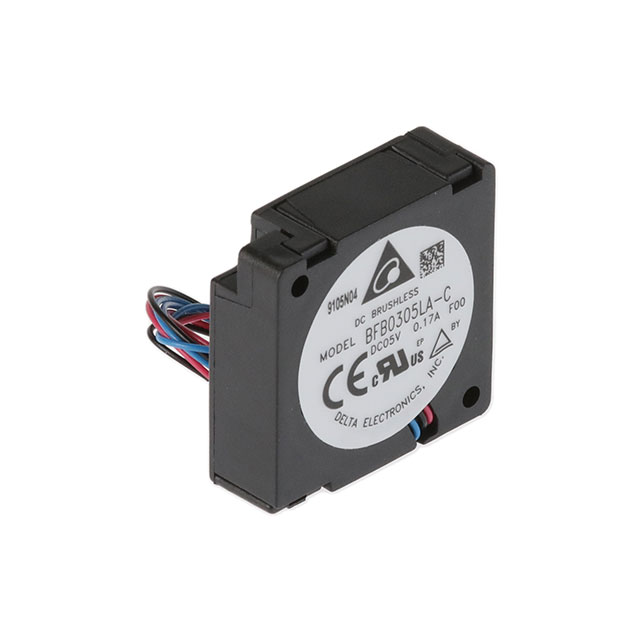

BFB0305LA-CF00

Active

Delta Electronics

FAN BLOWER 30X10MM 5VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 30X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	BFB0305LA-CF00

Air Flow	0.031 m³/min
Air Flow	1.1 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	24 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	450 mW
RPM	5500 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	35.9 Pa
Static Pressure	0.144 in H2O
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	10.43 g
Weight	0.023 lb
Width [y]	10 mm

Part	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage Range [Min]	Voltage Range [Max]	Termination	Material - Blade	Width [y]	Fan Type	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Bearing Type	Static Pressure	Static Pressure	Weight	Weight	Current Rating (Amps)	RPM	Power (Watts)	Noise	Lifetime @ Temp.	Air Flow	Air Flow	Features
Delta Electronics BFB0305LA-C	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	2 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	35.9 Pa	0.144 in H2O	10.43 g	0.023 lb	0.09 A	5500 RPM	450 mW	24 dB	30000 Hrs	0.031 m³/min	1.1 CFM
Delta Electronics BFB0305HA-C	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	2 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	71 Pa	0.285 in H2O	10.43 g	0.023 lb		7500 RPM	0.65 W	29 dB(A)	30000 Hrs	0.042 m³/min	1.5 CFM
Delta Electronics BFB0305LA-CF00	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	3 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	35.9 Pa	0.144 in H2O	10.43 g	0.023 lb	0.09 A	5500 RPM	450 mW	24 dB	30000 Hrs	0.031 m³/min	1.1 CFM	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0305MA-CR00	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	3 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	51.3 Pa	0.206 in H2O	10.43 g	0.023 lb	120 mA	6500 RPM	600 mW	26 dB	30000 Hrs	0.034 m³/min	1.2 CFM	Locked Rotor Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	720	$ 8.75

General part information

Fan Blower 5VDC Square - 30mm L x 30mm H Ball 1.1 CFM (0.031m³/min) 3 Wire Leads
