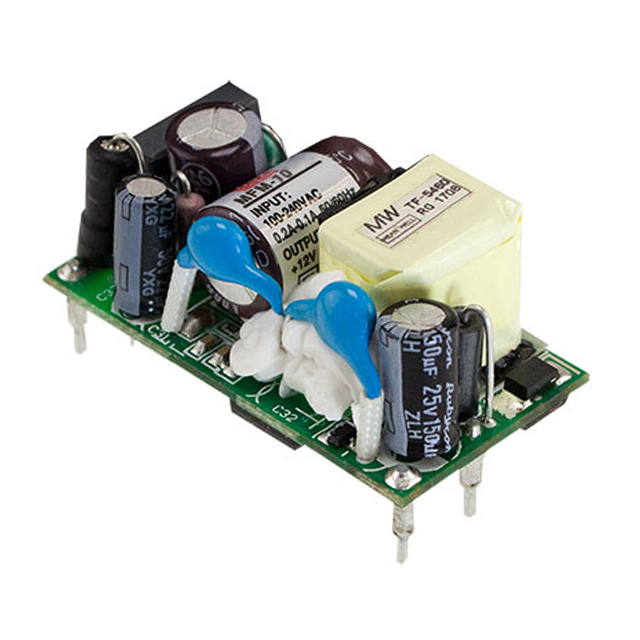

MFM-10-15

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 10W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Line Regulation	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Mounting Type	Load Regulation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Applications	Approval Agency	Power (Watts)
MEAN WELL USA Inc. MFM-10-12	850 mA	1	4-DIP Module	Open Frame	85 °C	-30 °C	83 %	0.3 %	264 VAC	80 VAC	12 V	Through Hole	0.5 %	0.88 "	20.5 mm	1.65 in	42 mm	22.3 mm	0.81 in	Universal Input	Medical	CB CE cURus TUV	10 W
MEAN WELL USA Inc. MFM-10-15	670 mA	1	4-DIP Module	Open Frame	85 °C	-30 °C	83 %	0.3 %	264 VAC	80 VAC	15 V	Through Hole	0.5 %	0.88 "	20.5 mm	1.65 in	42 mm	22.3 mm	0.81 in	Universal Input	Medical	CB CE cURus TUV	10 W
MEAN WELL USA Inc. MFM-10-5	2 A	1	4-DIP Module	Open Frame	85 °C	-30 °C	81 %	0.3 %	264 VAC	80 VAC	5 V	Through Hole	0.5 %	0.88 "	20.5 mm	1.65 in	42 mm	22.3 mm	0.81 in	Universal Input	Medical	CB CE cURus TUV	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	270	$ 8.13

General part information

Open Frame AC DC Converters 1 Output 15V 670mA 80 ~ 264 VAC Input
