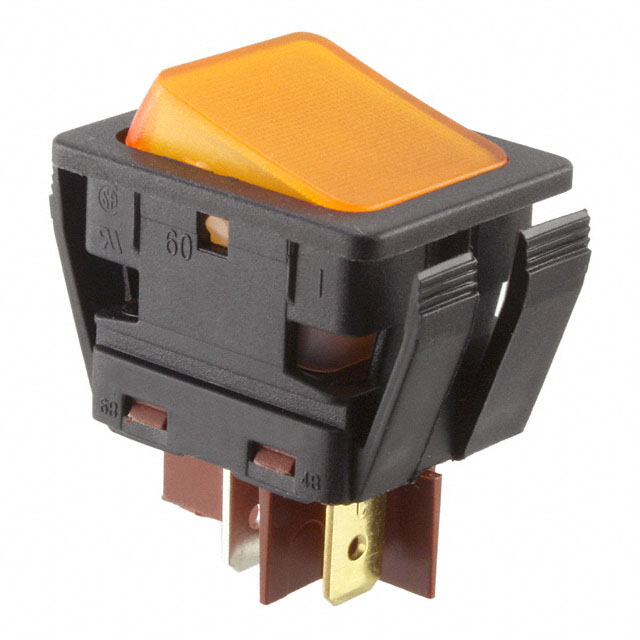

C6058ALBA2-B
ActiveBULGIN LIMITED
SWITCH ROCKER ON OFF SPST QUICK CONNECT FLAT ROCKER 20A 277VAC 1118.55VA
Deep-Dive with AI
Search across all available documentation for this part.
C6058ALBA2-B
ActiveBULGIN LIMITED
SWITCH ROCKER ON OFF SPST QUICK CONNECT FLAT ROCKER 20A 277VAC 1118.55VA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C6058ALBA2-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat - Illuminated |
| Approval Agency | CSA, UL |
| Circuit | SPST |
| Color - Actuator/Cap | Amber |
| Current Rating (Amps) | 20 A |
| Features | Antimicrobial |
| Illumination Type, Color | Neon, Amber |
| Illumination Voltage (Nominal) | 125 VAC |
| Ingress Protection | Splash Proof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30.1 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 11.11 | |
Description
General part information
C6058AL Series
Rocker Switch SPST 20A (AC) 277 V Panel Mount, Snap-In
