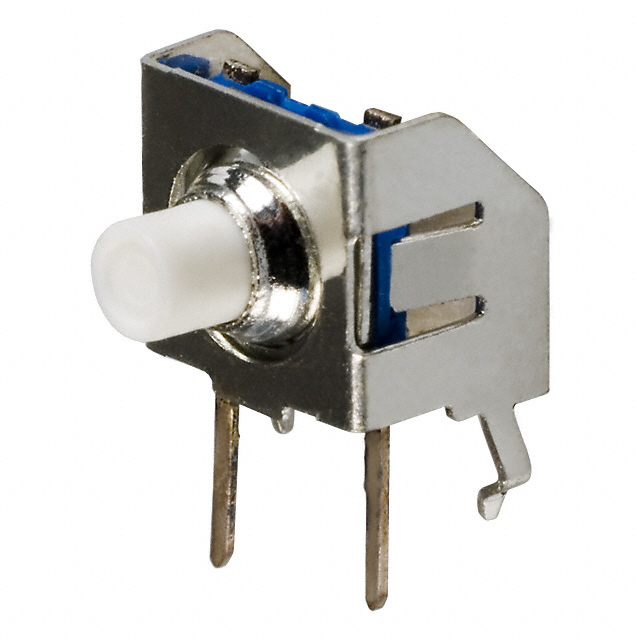

GSR8.54F130QP
ObsoleteE-Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSR8.54F130QP
ObsoleteE-Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSR8.54F130QP |
|---|---|
| Actuator Length, Right Angle | 6 mm |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Orientation | Side Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 50 VDC, 0.05 A |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 130 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 8 mm |
| Outline [y] | 8.54 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.3 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GSR8.54 Series
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
