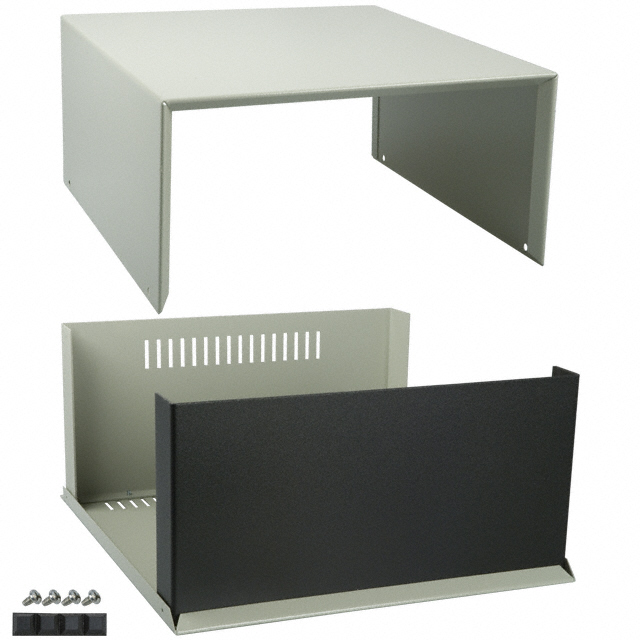

1426Q

Active

Hammond Manufacturing

BOX STEEL WHT 11.75"L X 11"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1426 Series

1426Q

Active

Hammond Manufacturing

BOX STEEL WHT 11.75"L X 11"W

Deep-Dive with AI

Documents1426 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1426Q	1426 Series

Area (L x W)	129 in²	30 - 129 in²
Area (L x W)	832 cm²	194 - 832 cm²
Color	Off, White	Blue, Off, White
Container Type	Box	Box
Design	U Shaped Pieces	U Shaped Pieces
Features	Vented Panels, Separate Panel or Cover Thickness	Vented Panels, Separate Panel or Cover Thickness
Height [z]	5.5 in	5.5 - 101.6 mm
Height [z]	139.7 mm	101.6 - 139.7 mm
Material	Metal, Steel	Metal, Steel
Size / Dimension [x]	298.45 mm	152.4 - 304.8 mm
Size / Dimension [x]	11.75 in	6 - 12 in
Size / Dimension [y]	279.4 mm	127 - 279.4 mm
Size / Dimension [y]	11 in	5 - 11 "
Thickness	20	20
Weight	2.4 kg	1 - 725.7 kg
Weight	5.3 lbs	0.222 - 5.3 lbs

1426 Series

BOX STEEL BLUE 8"L X 6"W

Part	Weight	Weight	Design	Container Type	Material	Color	Area (L x W)	Area (L x W)	Thickness	Height [z]	Height [z]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing 1426M-B	1 kg	2.3 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	48 in²	310 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels
Hammond Manufacturing 1426K-B	725.7 g	1.6 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	30 in˛	194 cm˛	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	6 in	127 mm	152.4 mm	5 "
Hammond Manufacturing 1426S	1.5 kg	3.2 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	72 in²	465 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	12 in	152.4 mm	304.8 mm	6 "
Hammond Manufacturing 1426S-B	1.5 kg	3.2 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	72 in²	465 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	12 in	152.4 mm	304.8 mm	6 "
Hammond Manufacturing 1426M	1 kg	2.3 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	48 in²	310 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels
Hammond Manufacturing 1426V-B	1.7 kg	3.7 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	96 in˛	619 cm˛	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	12 in	203.2 mm	304.8 mm	8 in
Hammond Manufacturing 1426Y-B	1.7 kg	3.7 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	72 in²	465 cm²	20	139.7 mm	5.5 in	Separate Panel or Cover Thickness, Vented Panels	12 in	152.4 mm	304.8 mm	6 "
Hammond Manufacturing 1426Q-B	2.4 kg	5.3 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	129 in²	832 cm²	20	139.7 mm	5.5 in	Separate Panel or Cover Thickness, Vented Panels	11.75 in	279.4 mm	298.45 mm	11 in
Hammond Manufacturing 1426Q	2.4 kg	5.3 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	129 in²	832 cm²	20	139.7 mm	5.5 in	Separate Panel or Cover Thickness, Vented Panels	11.75 in	279.4 mm	298.45 mm	11 in
Hammond Manufacturing 1426K	725.7 g	1.6 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	30 in˛	194 cm˛	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	6 in	127 mm	152.4 mm	5 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.51
		10	$ 64.32
		100	$ 61.11

Description

General part information

1426 Series

Box Metal, Steel White, Off U Shaped Pieces 11.750" L x 11.000" W (298.45mm x 279.40mm) X 5.500" (139.70mm)

Documents

Technical documentation and resources

1426 Series

Datasheet
