1426M

Active

Hammond Manufacturing

BOX STEEL WHT 8"L X 6"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1426 Series

1426M

Active

Hammond Manufacturing

BOX STEEL WHT 8"L X 6"W

Deep-Dive with AI

Documents1426 Series

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.11
		5	$ 58.20
		10	$ 54.39
		25	$ 50.69

Description

General part information

1426 Series

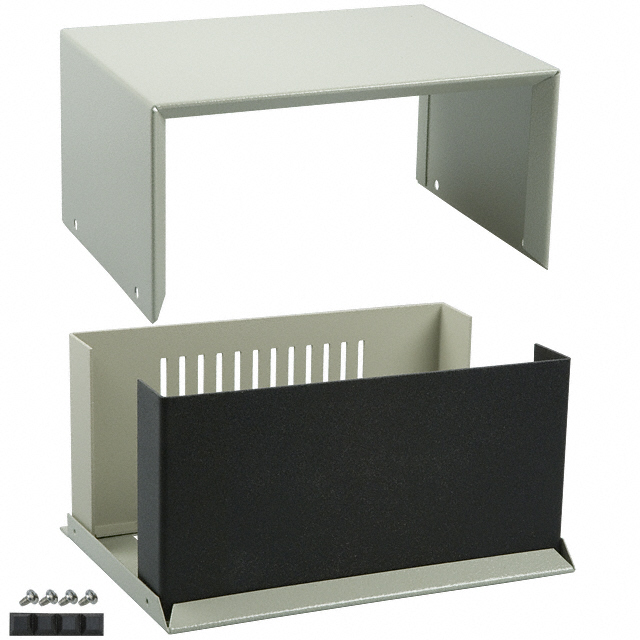

Box Metal, Steel White, Off U Shaped Pieces 8.000" L x 6.000" W (203.20mm x 152.40mm) X 4.000" (101.60mm)

Documents

Technical documentation and resources

1426 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1426M	1426 Series

Area (L x W)	48 in²	30 - 129 in²
Area (L x W)	310 cm²	194 - 832 cm²
Color	Off, White	Blue, Off, White
Container Type	Box	Box
Design	U Shaped Pieces	U Shaped Pieces
Features	Vented Panels, Separate Panel or Cover Thickness	Vented Panels, Separate Panel or Cover Thickness
Height [z]	101.6 mm	101.6 - 139.7 mm
Height [z]	101.6 mm	5.5 - 101.6 mm
Material	Metal, Steel	Metal, Steel
Size / Dimension	-	6 - 12 in
Size / Dimension	-	127 - 279.4 mm
Size / Dimension	-	152.4 - 304.8 mm
Size / Dimension	-	5 - 11 "
Thickness	20	20
Weight	1 kg	1 - 725.7 kg
Weight	2.3 lbs	0.222 - 5.3 lbs

1426 Series

BOX STEEL BLUE 8"L X 6"W

Part	Weight	Weight	Design	Container Type	Material	Color	Area (L x W)	Area (L x W)	Thickness	Height [z]	Height [z]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing 1426M-B	1 kg	2.3 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	48 in²	310 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels
Hammond Manufacturing 1426K-B	725.7 g	1.6 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	30 in˛	194 cm˛	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	6 in	127 mm	152.4 mm	5 "
Hammond Manufacturing 1426S	1.5 kg	3.2 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	72 in²	465 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	12 in	152.4 mm	304.8 mm	6 "
Hammond Manufacturing 1426S-B	1.5 kg	3.2 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	72 in²	465 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	12 in	152.4 mm	304.8 mm	6 "
Hammond Manufacturing 1426M	1 kg	2.3 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	48 in²	310 cm²	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels
Hammond Manufacturing 1426V-B	1.7 kg	3.7 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	96 in˛	619 cm˛	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	12 in	203.2 mm	304.8 mm	8 in
Hammond Manufacturing 1426Y-B	1.7 kg	3.7 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	72 in²	465 cm²	20	139.7 mm	5.5 in	Separate Panel or Cover Thickness, Vented Panels	12 in	152.4 mm	304.8 mm	6 "
Hammond Manufacturing 1426Q-B	2.4 kg	5.3 lbs	U Shaped Pieces	Box	Metal, Steel	Blue	129 in²	832 cm²	20	139.7 mm	5.5 in	Separate Panel or Cover Thickness, Vented Panels	11.75 in	279.4 mm	298.45 mm	11 in
Hammond Manufacturing 1426Q	2.4 kg	5.3 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	129 in²	832 cm²	20	139.7 mm	5.5 in	Separate Panel or Cover Thickness, Vented Panels	11.75 in	279.4 mm	298.45 mm	11 in
Hammond Manufacturing 1426K	725.7 g	1.6 lbs	U Shaped Pieces	Box	Metal, Steel	Off, White	30 in˛	194 cm˛	20	101.6 mm	101.6 mm	Separate Panel or Cover Thickness, Vented Panels	6 in	127 mm	152.4 mm	5 "
