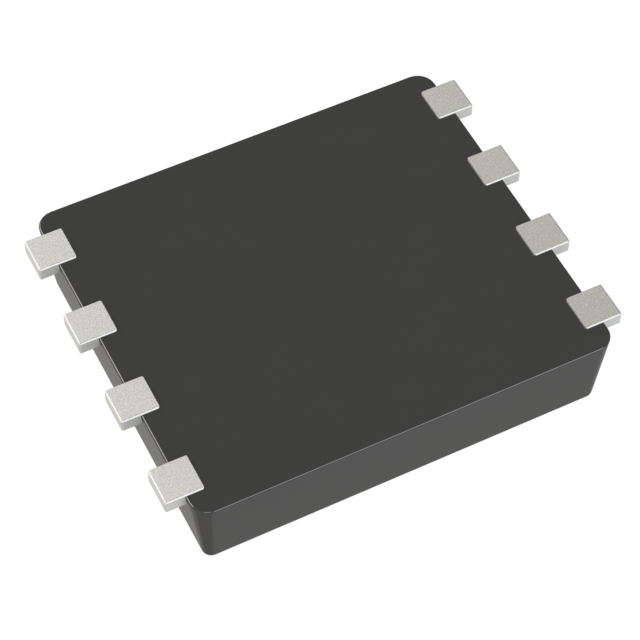

S-89120BPH-H4B-TFU

Active

ABLIC Inc.

IC CMOS 2 CIRCUIT SNT8A

Search across all available documentation for this part.

Active

ABLIC Inc.

IC CMOS 2 CIRCUIT SNT8A

Technical Specifications

Parameters and characteristics for this part

IC CMOS 2 CIRCUIT SNT8A

Part	Supplier Device Package	Current - Supply	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type	Voltage - Supply Span (Max) [Max]	Current - Input Bias	Current - Output / Channel	Mounting Type	Voltage - Supply Span (Min) [Min]	Slew Rate	Voltage - Input Offset	Gain Bandwidth Product
ABLIC Inc. S-89120BPH-H4B-TFU	SNT-8A	10 µA	2	85 °C	-40 °C	CMOS	5.5 V	1 pA	13 mA	Surface Mount	1.8 V	0.015 V/µs	3 mV	40 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.82
	Digi-Reel®	1	$ 0.82
	Tape & Reel (TR)	5000	$ 0.27

General part information

CMOS Amplifier 2 Circuit SNT-8A
