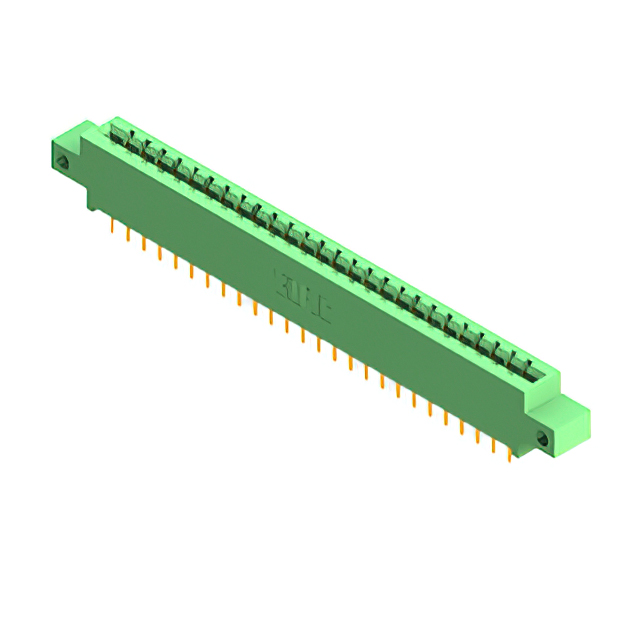

837-052-540-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-052-540-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-052-540-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
837-052 Series
...
| Part | Mounting Type | Contact Material | Gender | Contact Finish | Contact Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Flange Feature | Flange Feature | Flange Feature | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Number of Positions/Bay/Row [custom] | Color | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions | Card Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Wire Wrap | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | |||
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Wire Wrap | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | |||||
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Wire Wrap | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | |||||
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | ||||
EDAC Inc. | Board Edge Straddle Mount | Copper Alloy | Female | Gold | Cantilever | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | Card Extender | ||||
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | ||||||
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Wire Wrap | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | |||||
EDAC Inc. | Board Edge Straddle Mount | Copper Alloy | Female | Gold | Cantilever | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | Card Extender | ||||
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Wire Wrap | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | |||||
EDAC Inc. | Through Hole | Copper Alloy | Female | Gold | Cantilever | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 26 | Green | 0.156 in | 3.96 mm | 2 | 52 | Non Specified - Dual Edge | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 81.98 | |
Description
General part information
837-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Documents
Technical documentation and resources
