9209 010U1000

Active

Belden Inc.

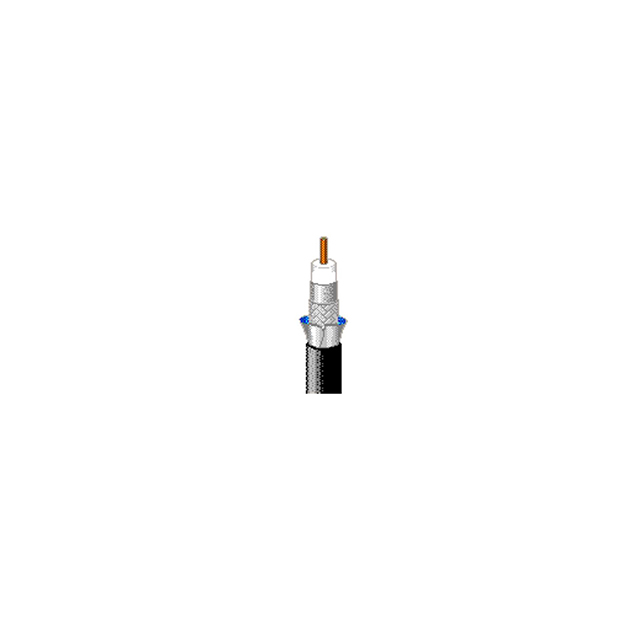

CABLE COAXIAL RG-59 23AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAXIAL RG-59 23AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	9209 010U1000

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.146 "
Dielectric Diameter [diameter]	3.71 mm
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-55 °C
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Video
Wire Gauge	23 AWG

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Cable Group	Jacket (Insulation) Material	Conductor Strand	Usage	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Shield Type	Wire Gauge	Shield Coverage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Length	Length
Belden Inc. 9209 010U500	0.146 "	3.71 mm	Coaxial	RG-59	Polyethylene (PE)	Solid	Video	Copper Bare	80 C	-55 °C	Aluminum Polyester Copper Tinned	Braid Foil	23 AWG	95 % 100 %	Black	0.22 in	5.59 mm	75 Ohms	152.4 m	6000 in
Belden Inc. 9209 010U1000	0.146 "	3.71 mm	Coaxial	RG-59	Polyethylene (PE)	Solid	Video	Copper Bare	80 C	-55 °C	Aluminum Polyester Copper Tinned	Braid Foil	23 AWG	95 % 100 %	Black	0.22 in	5.59 mm	75 Ohms	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 23 AWG RG-59 1000.0' (304.80m) 75 Ohms
