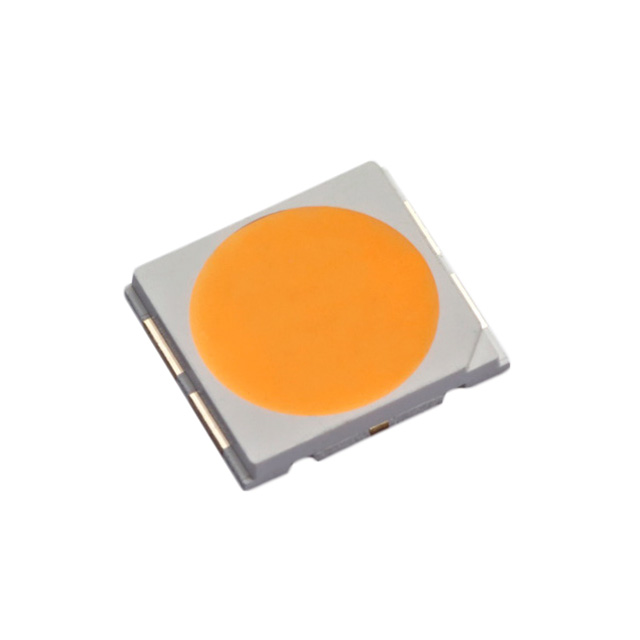

LED LUXEON COOL WHITE 5000K 5258

Search across all available documentation for this part.

Obsolete

Lumileds

LED LUXEON COOL WHITE 5000K 5258

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L152-5070502400000	L152 Series

CCT (K)	5000 K	2700 - 5700 K
Color	Cool, White	White, Warm, Cool
CRI (Color Rendering Index)	70	70 - 90
Current - Max [Max]	240 mA	60 - 240 mA
Current - Test	-	40 mA
Flux @ 25°C, Current - Test	590 lm	450 - 590 lm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Lumens/Watt @ Current - Test	154 lm/W	117 - 154 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-SMD, No Lead Exposed Pad	4-SMD, No Lead Exposed Pad
Size / Dimension [x]	5.2 mm	5.2 mm
Size / Dimension [x]	0.205 in	0.205 in
Size / Dimension [y]	5.8 mm	5.8 mm
Size / Dimension [y]	0.228 in	0.228 in
Supplier Device Package	5258	5258
Thermal Resistance of Package [diameter]	1.5 °C/W	1.5 °C/W
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	24 V	24 - 96 V

LED LUXEON WARM WHT 2700K 5258

Part	Supplier Device Package	Color	Mounting Type	Flux @ 25°C, Current - Test	Thermal Resistance of Package [diameter]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	CRI (Color Rendering Index)	CCT (K)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Lumens/Watt @ Current - Test	Current - Test
Lumileds L152-2790502400000	5258	Warm, White	Surface Mount	450 lm	1.5 °C/W	5.8 mm	5.2 mm	0.228 in	0.205 in	4-SMD, No Lead Exposed Pad	90	2700 K	115 °	24 V	0.8 mm	0.031 "	240 mA	117 lm/W
Lumileds L152-5770502400000	5258	Cool, White	Surface Mount	590 lm	1.5 °C/W	5.8 mm	5.2 mm	0.228 in	0.205 in	4-SMD, No Lead Exposed Pad	70	5700 K	115 °	24 V	0.8 mm	0.031 "	240 mA	154 lm/W
Lumileds L152-3080502400000	5258	Warm, White	Surface Mount	500 lm	1.5 °C/W	5.8 mm	5.2 mm	0.228 in	0.205 in	4-SMD, No Lead Exposed Pad	82		115 °	24 V	0.8 mm	0.031 "	240 mA	130 lm/W
Lumileds L152-5070502400000	5258	Cool, White	Surface Mount	590 lm	1.5 °C/W	5.8 mm	5.2 mm	0.228 in	0.205 in	4-SMD, No Lead Exposed Pad	70	5000 K	115 °	24 V	0.8 mm	0.031 "	240 mA	154 lm/W
Lumileds L152-2780502400000	5258	Warm, White	Surface Mount	485 lm	1.5 °C/W	5.8 mm	5.2 mm	0.228 in	0.205 in	4-SMD, No Lead Exposed Pad	82	2700 K	115 °	24 V	0.8 mm	0.031 "	240 mA	126 lm/W
Lumileds L152-3080509600000	5258	Warm, White	Surface Mount	458 lm	1.5 °C/W	5.8 mm	5.2 mm	0.228 in	0.205 in	4-SMD, No Lead Exposed Pad	82		115 °	96 V	0.8 mm	0.031 "	60 mA	119 lm/W	40 mA
